HEINE BETA
®
200 LED Retinoscope
HEINE BETA
®
200 Retinoscope
These instructions apply to the following products of the HEINE Retinoscope series:
BETA
®
200 LED, BETA
®
200.
Please read and follow these instructions for use of and keep them for future
reference.
Intended Use
The HEINE
®
Retionscope is a hand-held, non-invasive, internally powered medical
device. It is intended for the transient measuring of the refraction (objective refraction)
of the eye.
The device may only be used by qualied medical personnel and in professional
healthcare facilities.
For U.S. only:
Federal law restricts this device to sale by or on the order of a Physician or
Practitioner.
Warnings and Safety Information
CAUTION! This symbol indicates potential hazardous situations. Ignoring the
corresponding instructions may lead to dangerous situations of mild to moderate
extent. (Background color yellow; foreground color black).
NOTE! This symbol indicates valuable advice in terms of installation, operation,
maintenance or repair. Notes are important, but not related to hazardous situations.

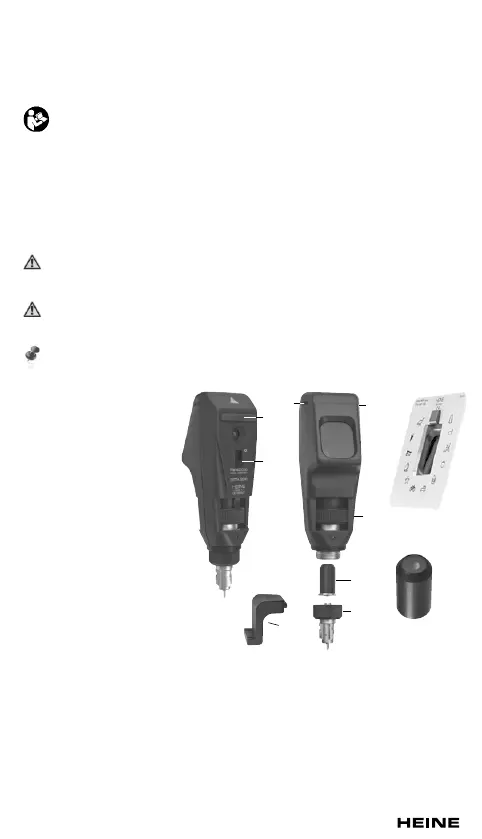

Product overview
1 Connector (only XHL)
2 Bulb cover (only XHL)
3 Control ring
4 ParaStop
5 Brow rest
6 Brow rest
7 Fixation card
8 Orange lter (only XHL)
Setting up
To set up the HEINE
®
Retinoscope, plug the instrument head into the HEINE
®
supply
handle.
Verify that the lamp voltage complies with the supply voltage of the handle. The
coloured marking on the bottom of the XHL lamp shows you the lamp voltage:
White ring = HEINE XHL
®
2.5 V bulb
only for use with the HEINE BETA
®
battery handle
Red ring = HEINE XHL
®
3.5 V bulb
only for use with the HEINE BETA
®
rechargeable handle and HEINE
®
wall unit
The supply voltage for the BETA 200 LED Retinoscope is 3.5 V.
5
4
1
2
3
A
A
6
7
8
