6 Regulating Linkage
16 Digital Positioning System 2000
6.4 Linkage Adjustment for Carburettor Engines
For carburettor or gas engines, the length of the connecting linkage is adjusted in such a
way that with the governor in full load position the throttle valve is completely open. In
idling speed position, the elastic link must be slightly overcome. This allows adjustment of
the idle screw without changing the governor adjustment.

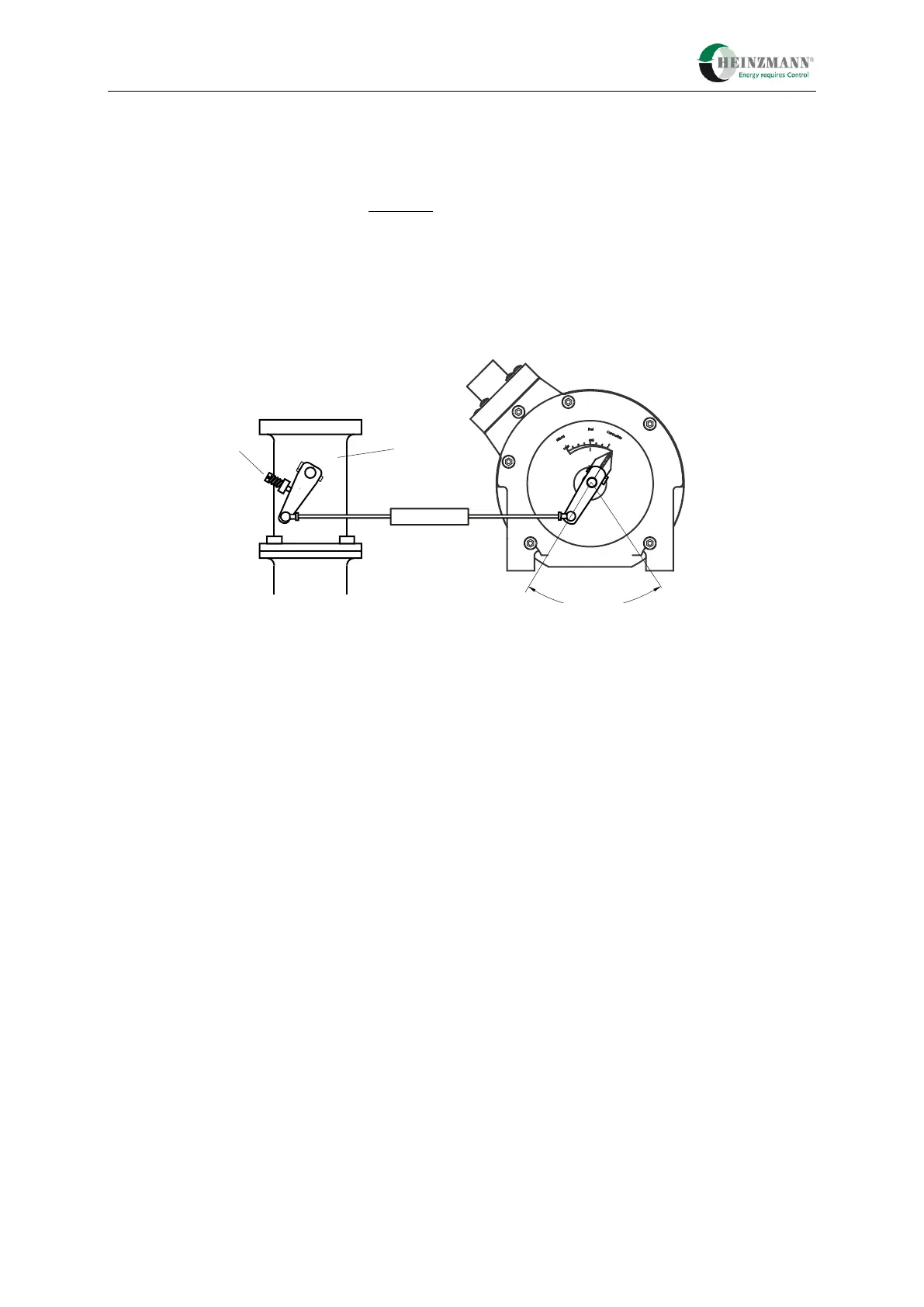

Figure 6: Example of linkage for gas engines
If carburettor or injektion pump are to the left of the governor as opposed to their position
on the drawings, then the direction of motion of the elastic link must also be reversed.
Stop screw
for idle speed
