7 Electrical Connection
18 Digital Positioning System 2000
7.2 Connection of Power Supply
Inappropriate choice of power supply or insufficient battery capacitance or incorrect
connection of the power supply line or too small cable sizes of the feed line and the motor
line of the positioner are bound have an adverse effect upon the performance of the speed
governor. In steady state operation, this will cause a heavy increase of current consumption
and unnecessary vibration of the positioner drive. The high current consumption will in its
turn lead to overheating of the actuator or the position control unit, and the vibration will
result in premature wear of the gear and bearing parts or of the linkage.
NOTE: In altogether, the lifetime of the control system is distinctly reduced by the
errors described above

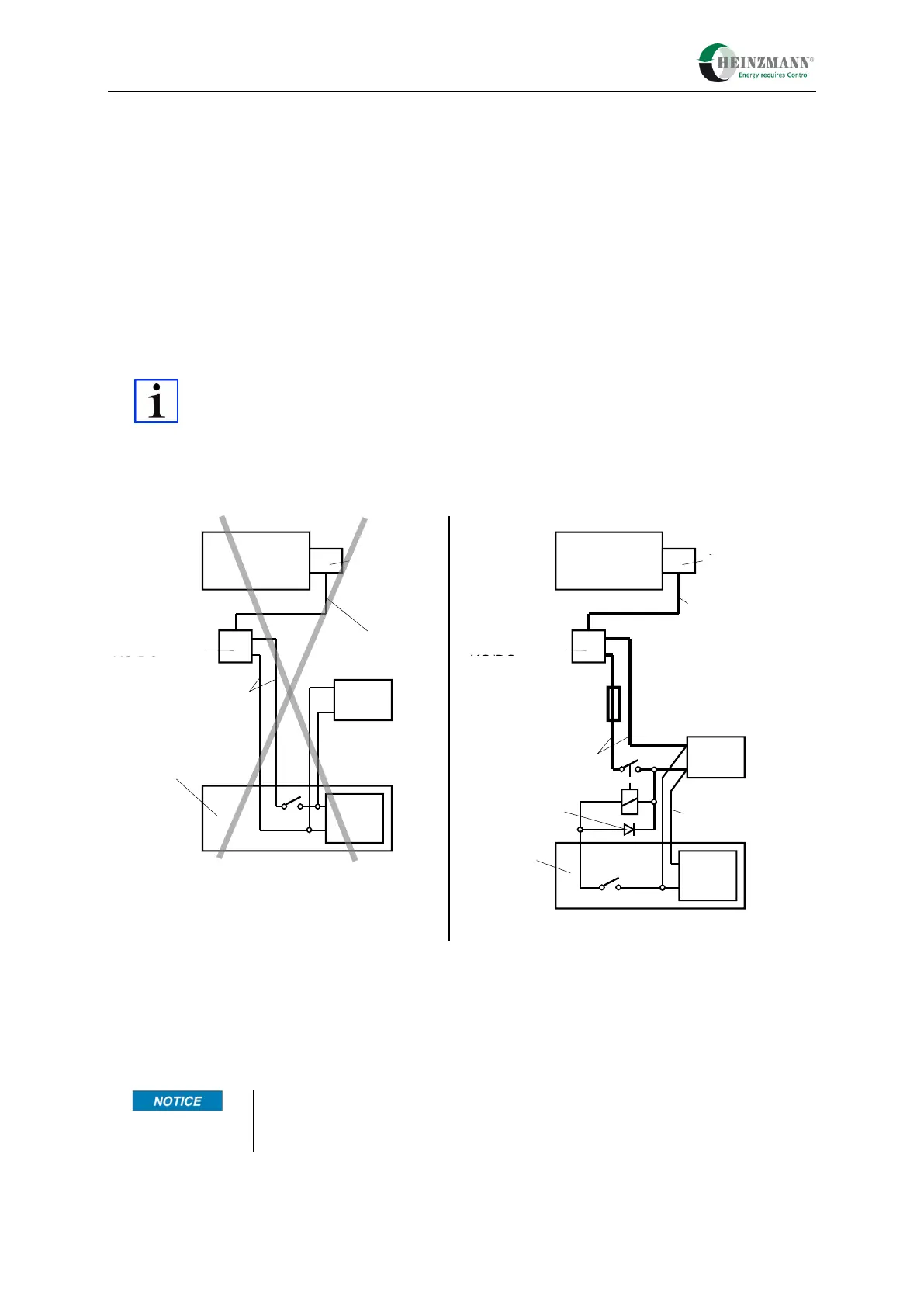

The following figure shows both a wrong and a correct cabling:
(-)
(+)
E
F
-
+
+
-
The control unit has to
be connected via a fuse
and a switch directly to
the battery!
(-)
(+)
E
F
-
+
Cable to Power
Supply L1
+
-
Battery
Engine
HEINZMANN
Actuator
StG ...
Actuator Cable L2
Switch Board
Governor
on/off Charger
HEINZMANN
Control Unit
KG/DC ...
Engine
...
Switch Board
The ripple voltage of the charger is fed
directly into the electronic governor!
This will demage the actuator!
correct
1) Coils (e.g. stopping solenoid, gas valve) have to be equipped with a protective circuit to eliminate high
indunctance votages. Diode type e.g. 1N4002
HEINZMANN
Control Unit
KG/DC ...
HEINZMANN
Actuator
StG ...
Fuse
Cable to Power
Supply L1
Actuator Cable L2
wrong
Charger
Governor
on/off
Battery
Freewheeling
Diode 1)
Figure 8: Correct Connection of Power Supply
If there are battery chargers with rapid charge mode installed in the plant,
the rapid charge mode should no be used during operation.
Positioner
StG 2040/2080-PD
Positioner
StG 2040/
2080-PD
