7 Installing the FSZ Basis
7 Installing the FSZ Basis
The safe installation of the FSZ base requires only 2 holes (see annex drilling template). The FSZ
Basis is therefore delivered including two screws and dowels.
The installation position can be selected as desired. The FSZ accessories kit – which must be ordered
separately – includes two mounting adapters for installation of the FSZ Basis in a switch cabinet or
on a top-hat rail. The mounting adapters can be mounted on the rear of the FSZ Basis at the points
provided.
Mounting points for top-hat rail adapter

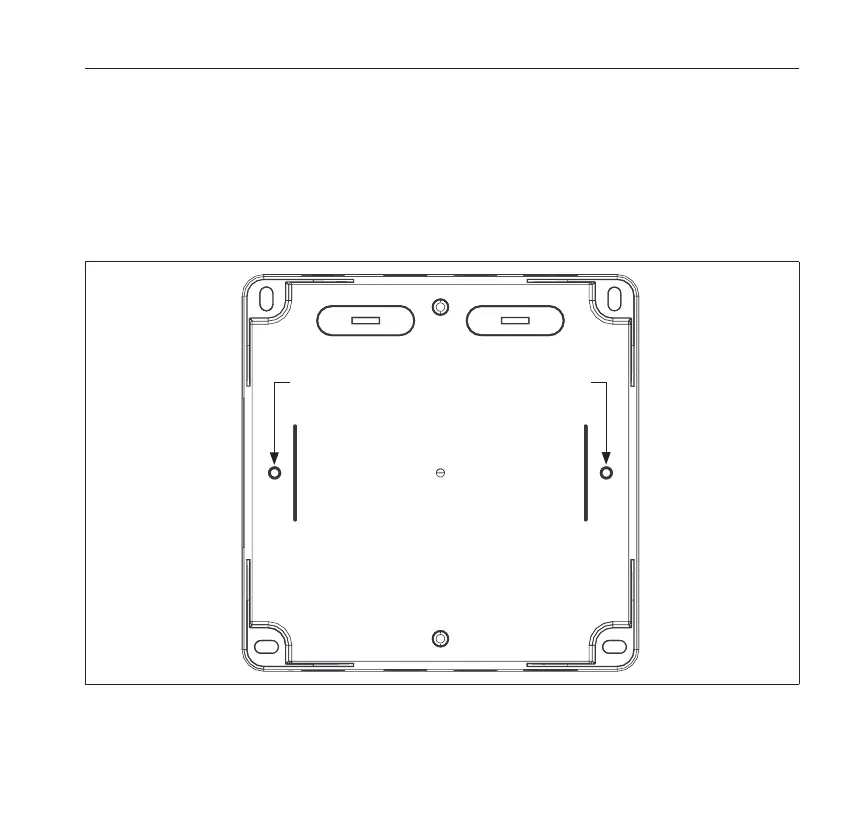

Fig. 1: Mounting points for top-hat rail adapter
