9 Electrical installation
9.6 Connection configurations according to DIBt and DIN EN 14637
9.6.1 Connection without line surveillance (DIP 1 OFF)
The system is operated with a smoke switch stub, an external manual release button and an
external reset button.

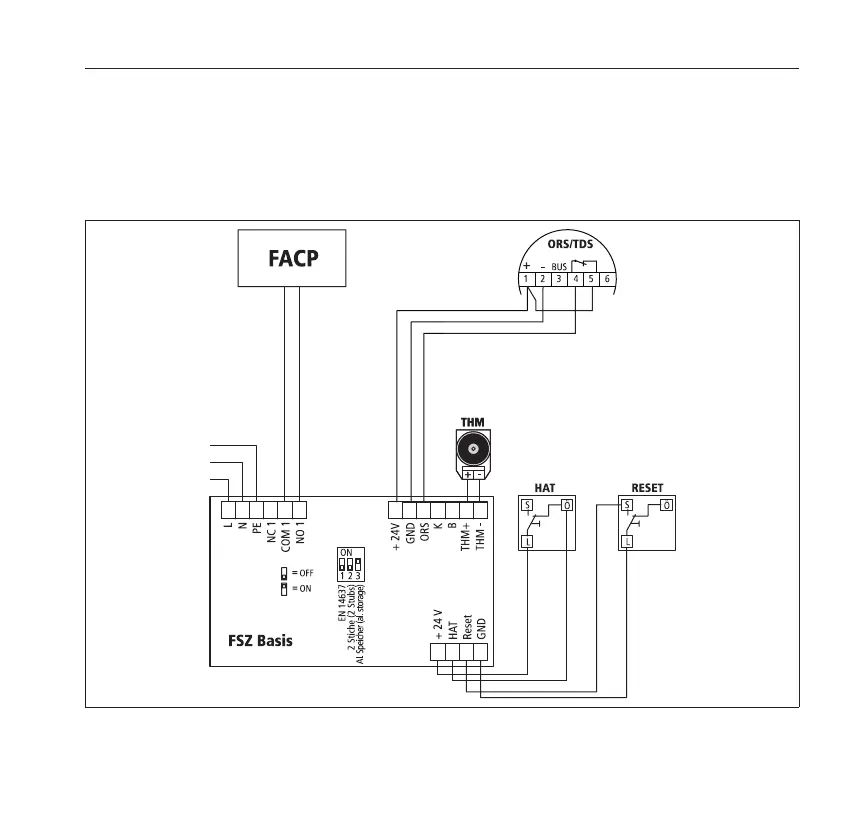

Fig. 5: Example connection without line surveillance
