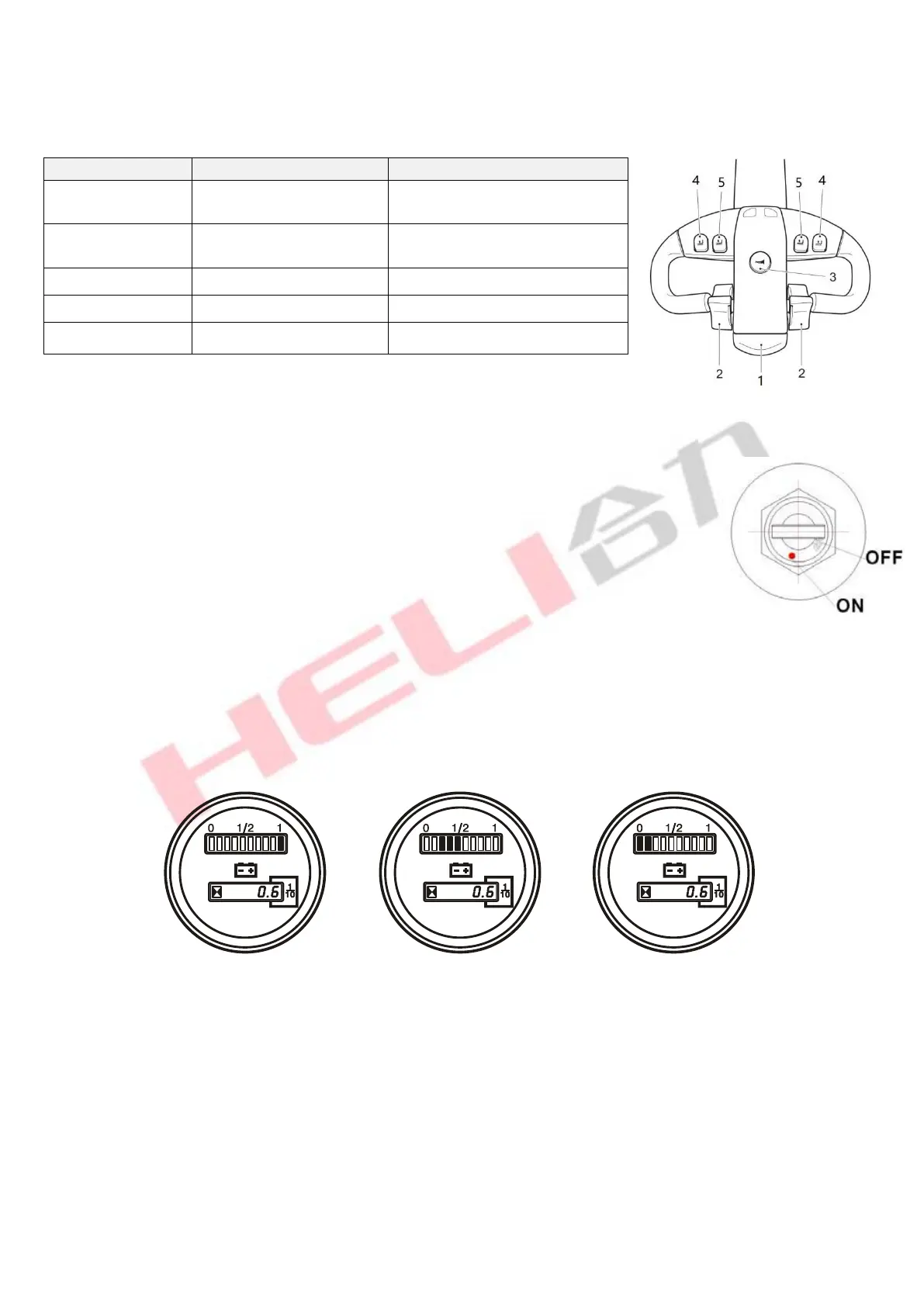

1.2 Vehicle components
1.2.1 Handle operation
1.2.2 Key switch
Screw the key to the "ON" position, turn on the vehicle power.
Screw the key to the "OFF" position, turn off the vehicle power.
In case of vehicle failure, please turn the key switch to the "OFF"
position and drag the vehicle to a safe place before maintenance.
Before leaving the vehicle, unplug the switch lock key to ensure that the vehicle
will not start accidentally.
1.2.3 Battery discharge indicator
The battery discharge status is indicated by 10 LEDs on the battery discharge indicator/hour
meter. 5 green, 3 yellow and 2 red LEDs are provided.One LED corresponds to 10% of the
battery capacity.
If a red LED flashes, this indicates that the truck is in the energy reserve mode (30
- 20% battery capacity).
When the charge falls below 20% of battery capacity (charge status low), both red LEDs
flash .
Serial number
Name
Function
1
Emergency reverse
button
Protect driver function
switch
2
Traveling switch
Control driving direction
and speed
3
The horn button
Sound the alarm
4
Rising button
Lifting load
5
Decline button
Descending load
Recharge necessary
Charge status low
Fully charged
