manually the hub for 3-4turns to ensure its smooth rotation with a specified torque of
2.94-7.8Nm (0.3-0.8kgm).
(7) If the torque value necessary to rotate the hub is more than the specified one
above-mentioned, screw out the castle nut for 1/6 turn and measure the torque value then.
(8) When the torque value measured is up to the specified one, lock the castle nut with a
cotter pin.

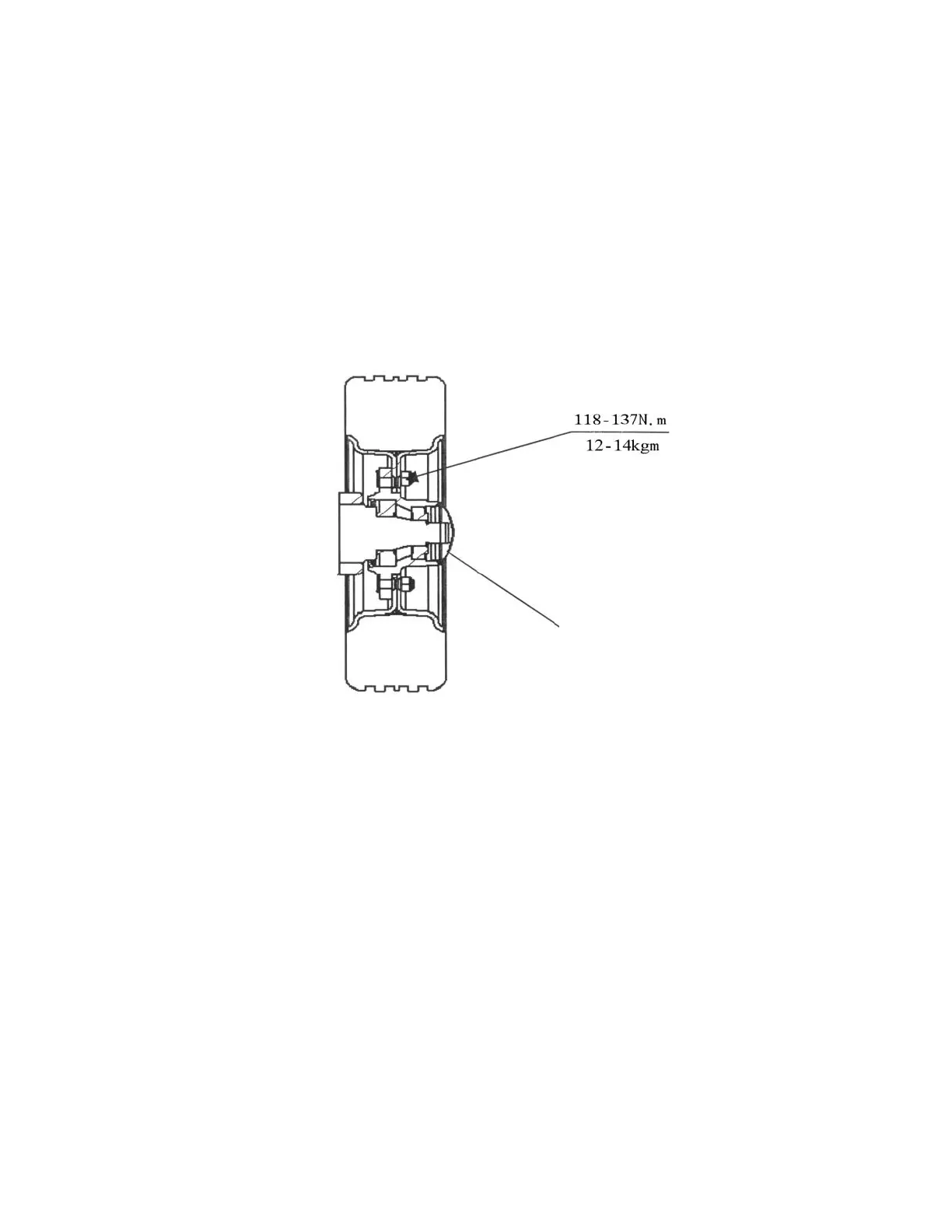

Fig. 3-3 Fill lubricating grease and pre-load adjustment
3.5.2 Inspect after reassembling the steering system
(1) Turning the steering wheel right and left, inspect whether the steering power is
smooth.
(2) Inspect connection of the electric harness whether is correct by turning the steering
hand-wheel ring and left.
(3) Lift up the rear wheels and slowly turn the steering hand-wheel ring and left several
times to ensure if the steering is correct.
Adding lubricating grease
To Next Page
