e) Replace seal rings, bushings, seal
rings, rings, oil seals and snap rings as
required.

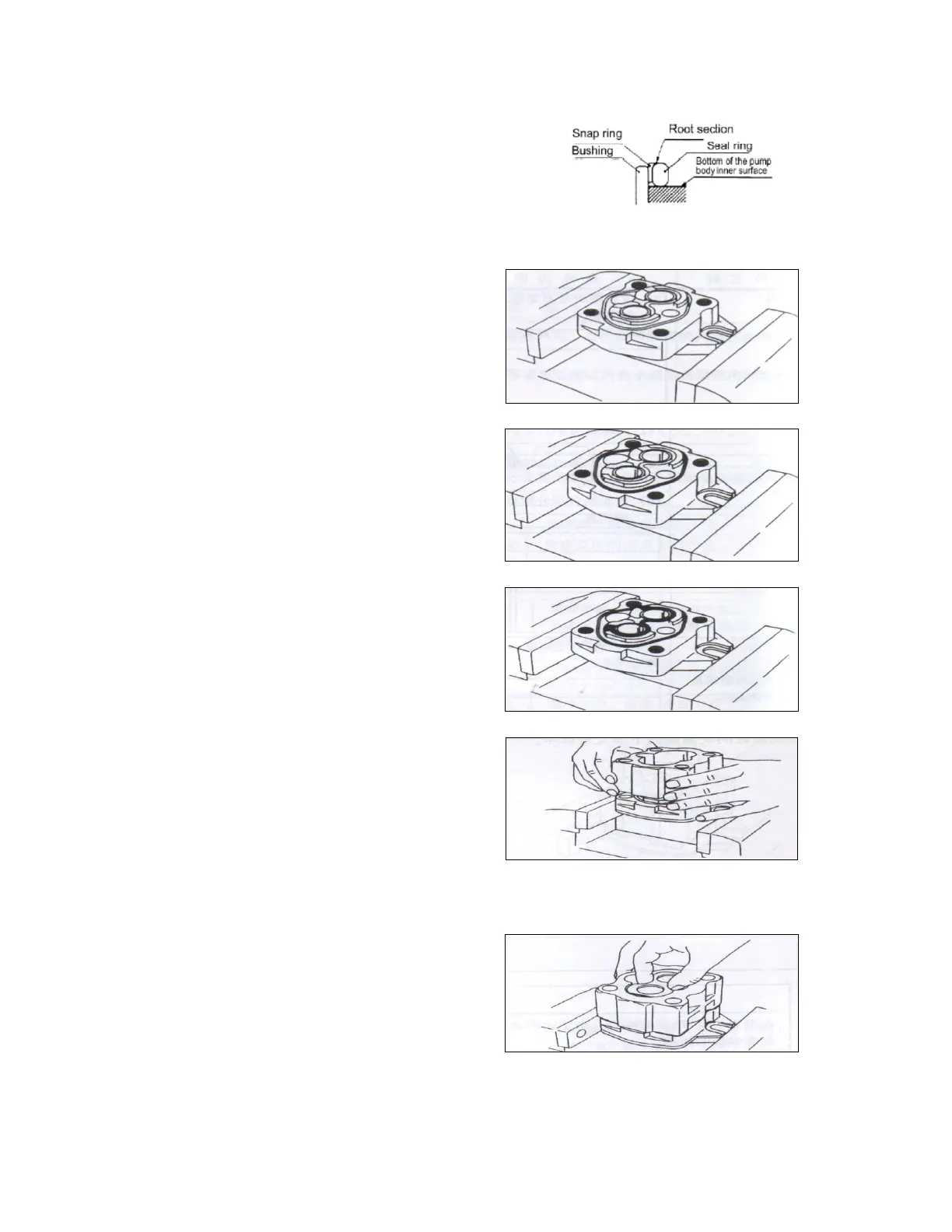

Fig. 5-27
(3) Reassembly
a) Fixed the front cover on the
clamping. (See Fig. 5-28)
Fig. 5-28
b) Install a new seal ring on the front
cover of the pump.
Notice: Don’t twist.
Fig. 5-29
c) Install a new ring on the front
cover of the pump. The direction of the
installation see Fig. 5-30.
Fig. 5-30
d) Install the pump body on the front
cover. Pay attention to the direction of the
pump body.
Fig. 5-31
e) Install the lining plate on the groove of
the front cover, don’t confuse the inlet oil
port and the outlet oil port. Pay attention
to the direction of the lining plate.
Fig. 5-32
