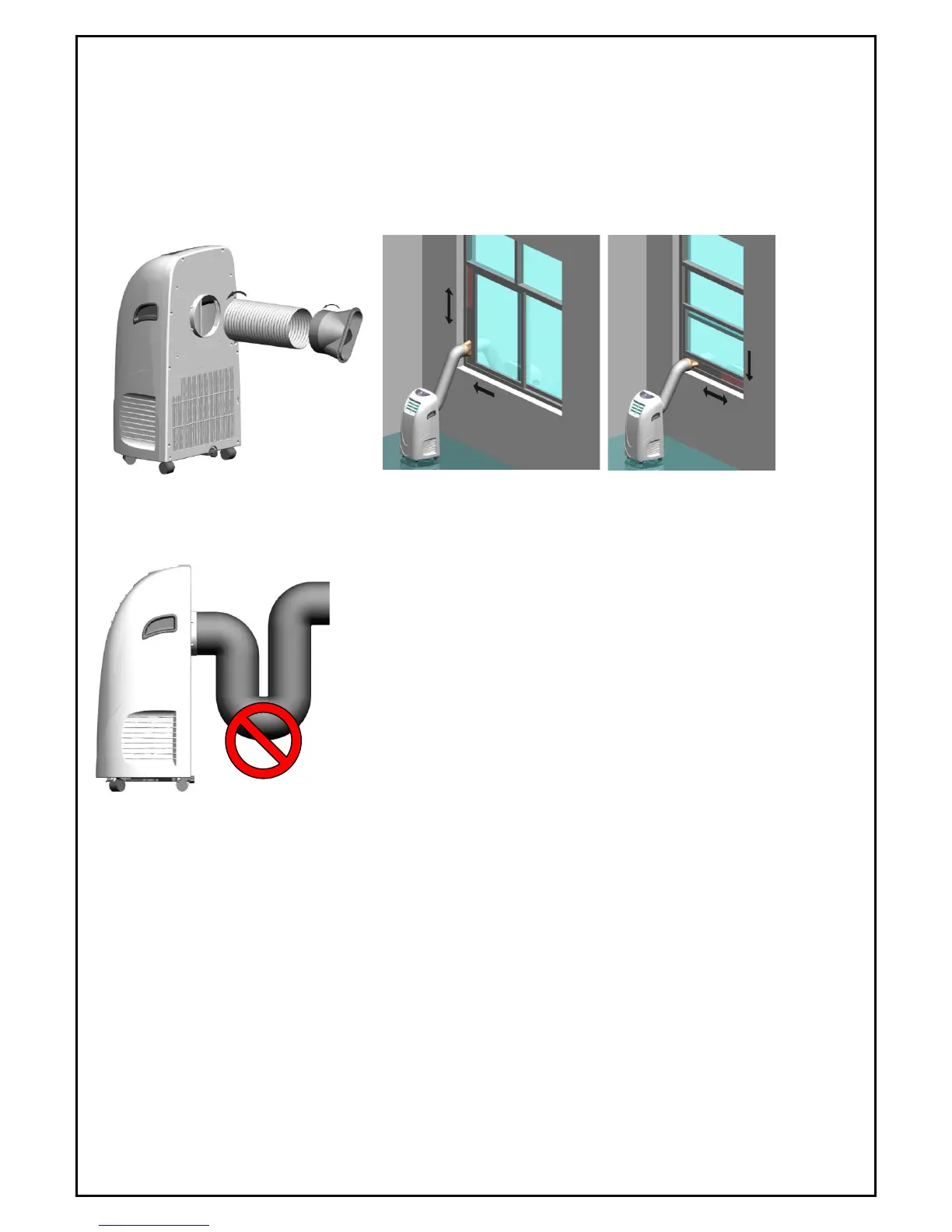

Assembly
Fix the exhaust pipe into the adapter, and then fix the other side of the exhaust pipe into the air outlet vent
of the unit (anti-clockwise) as per diagram 2 below.
Fix the adapter into the window slider kit, and then half open the window to meet the width of the window
slider kit. The length of the window slider kit is adjustable, as per diagram 3.
Incorrect mounting
Ensure the exhaust pipe is not twisted, as this can affect the
performance of the appliance see diagram 4.
Take care to prevent any sharp bows or bends of the exhaust pipe.
NOTE: The exhaust air must be able to flow freely.
WARNING: The length of the exhaust pipe is specially designed according to the specification of this product.
Do not replace or extend it with your own private hose as this could cause malfunction.
WARNING: Maximum length of the exhaust pipe is 1500mm. Use the shortest possible distance between the
appliance and the window. When mounting, keep the exhaust pipe in a horizontal position.
DIA 2
DIA 3
DIA 4

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HELLER HPAC10 and is the answer not in the manual?

HELLER HPAC10 Specifications

Operating Environment IconOperating Environment
permissible excessive operating pressure (suction)1.5 MPa
permissible excessive operating pressure (discharge)5.5 MPa
maximum allowable pressure (low pressure side)1.7 MPa
maximum allowable pressure (high pressure side)5.5 MPa
Power IconPower
power supply220-240 V / 50 Hz
rated input (cooling)1050 W
Performance IconPerformance
cooling capacity2.93 kW
air flow360 m3/h
noise55 dB(A)
Refrigerant IconRefrigerant
refrigerant typeR410a
refrigerant charge500 g
Weight and Dimensions IconWeight and Dimensions
net weight25 kg
gross weight30 kg
dimensions (WxHxD)433 x 795 x 330 mm
