17730-254 17 Preventive Maintenance

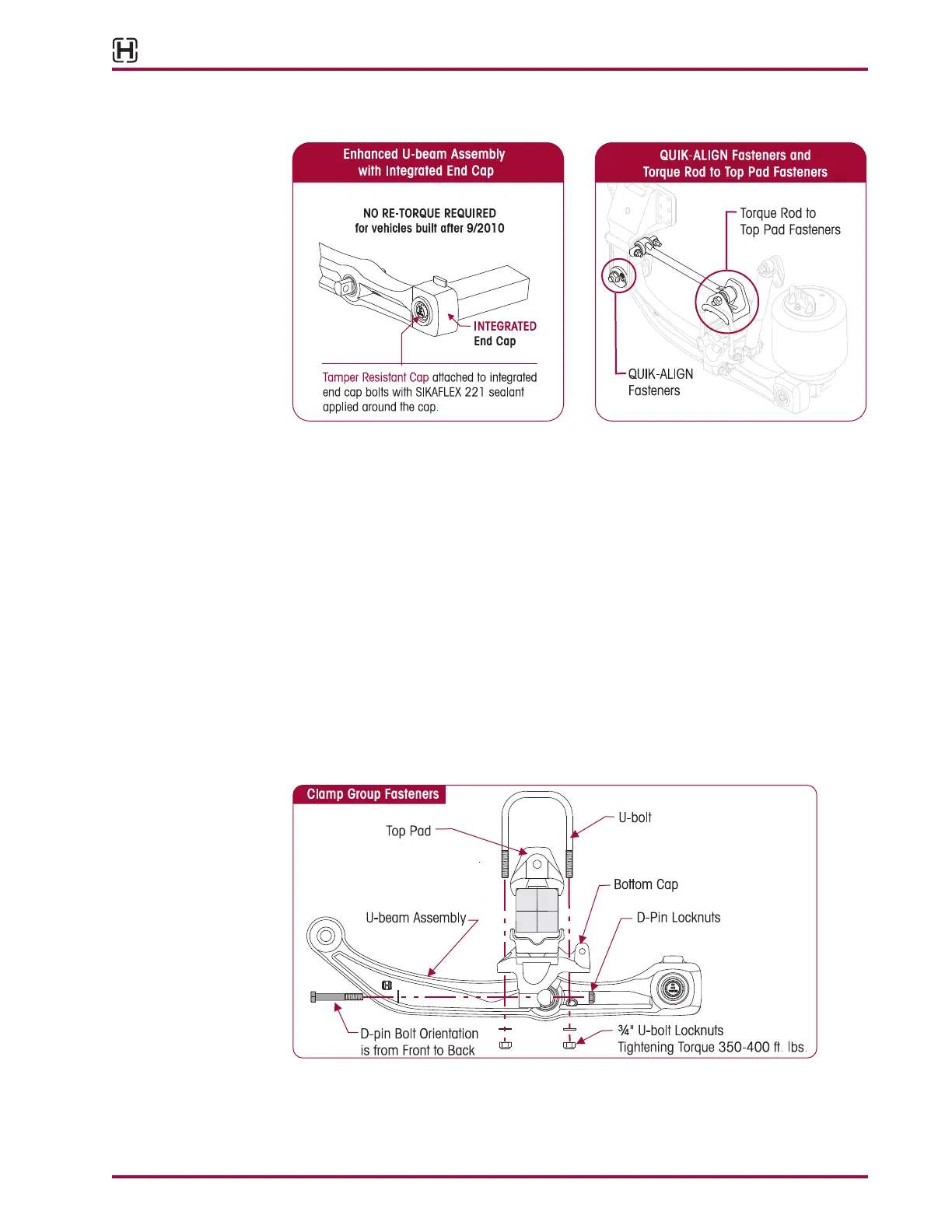

FIGURE 6-1 FIGURE 6-2

INSPECTION AT 1,000 MILES

1. Visually inspect suspension components with special attention to air springs and U-beam

assembly (support beam assembly, cross tube, and integrated end cap). Check for:

■

Proper suspension function

■

Any signs of unusual movement, loose or missing components

■

Any signs of abrasive or adverse contact with other components

■

Any damaged, bent or cracked parts

2. Check all fasteners for proper torque with special attention to the following suspension

connections.

■

QUIK-ALIGN fasteners, see Figure 6-2.

■

Torque rod to top pad fasteners, see Figure 6-2.

■

Clamp group fasteners (U-bolts), see Figure 6-3.

FIGURE 6-3
