2.2 Rear view of the unit
Description of the unit components:
[1] Exhaust filter guard, 50058231
[2] Ballast, 50058001
[3] Mains supply (unit), 50058427
[4] Mains supply (internal outlet), 50058427
[5] Glass plate, 50043699
[6] Twist stopper, 50046334
2. View of the unit and description of the components

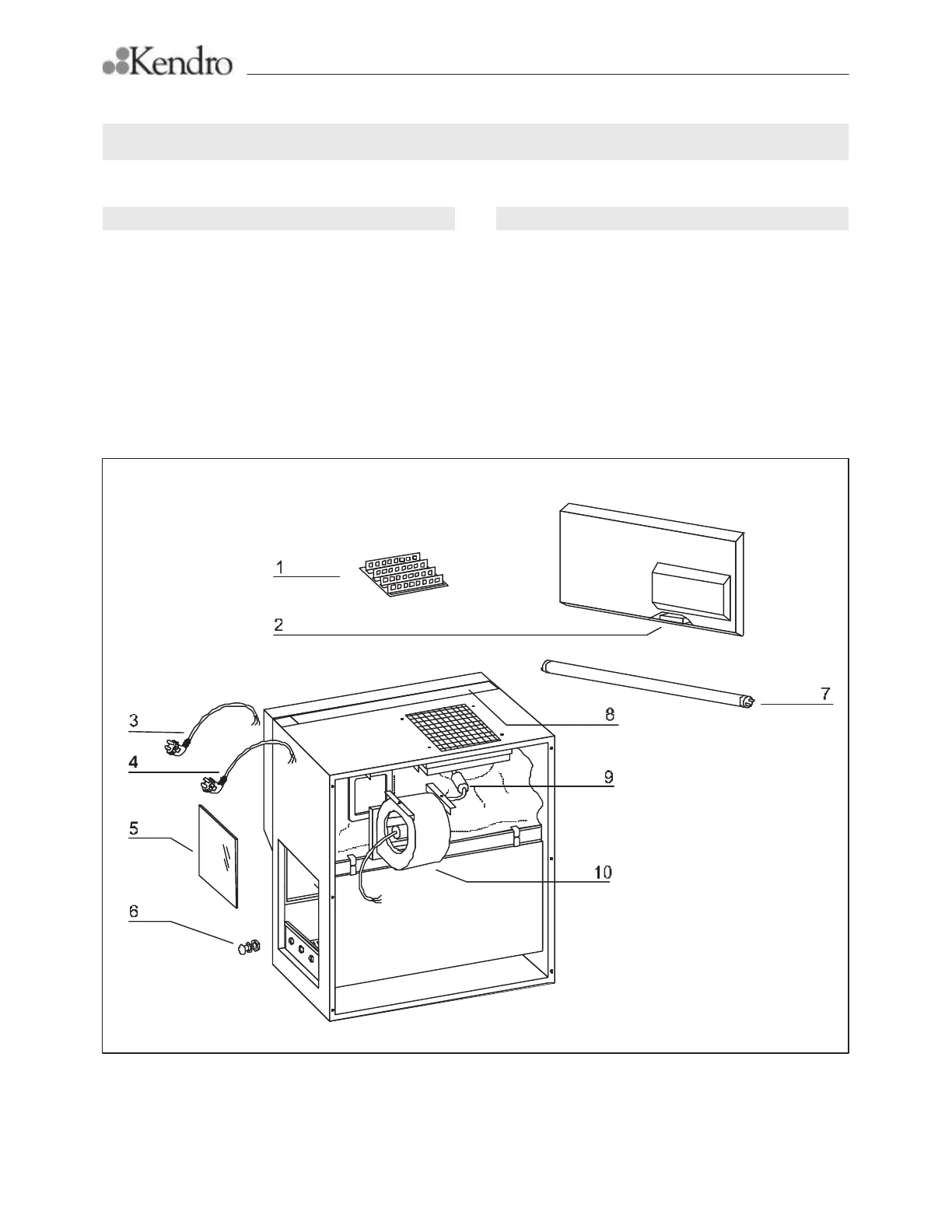

Fig. 2, Rear view of the unit
Figure 2
Description of the unit components:
[7] Florescent lamp, 50058007
[8] Cover plate, 50046942
[9] One-way diaphragm filter, 50045320
[10] Blower, 50059898
