Service Instructions HERAsafe HS/12/18
Valid: 05.2001 / 50060091 / A • 11 •
2.1 Front view of the unit
Description of the unit components:
[1] Exhaust filter, 50059628
[2] Downflow filter, 50059627
[3] Perforated plate, 50050699
[4] Prefilter panel, 50057962
[5] Working plate module small, 50057420
[5] Working plate module large, 50057445
[6] Support stand, 50057596
[7] Tube drive, 50059899
2. View of the unit and description of the components

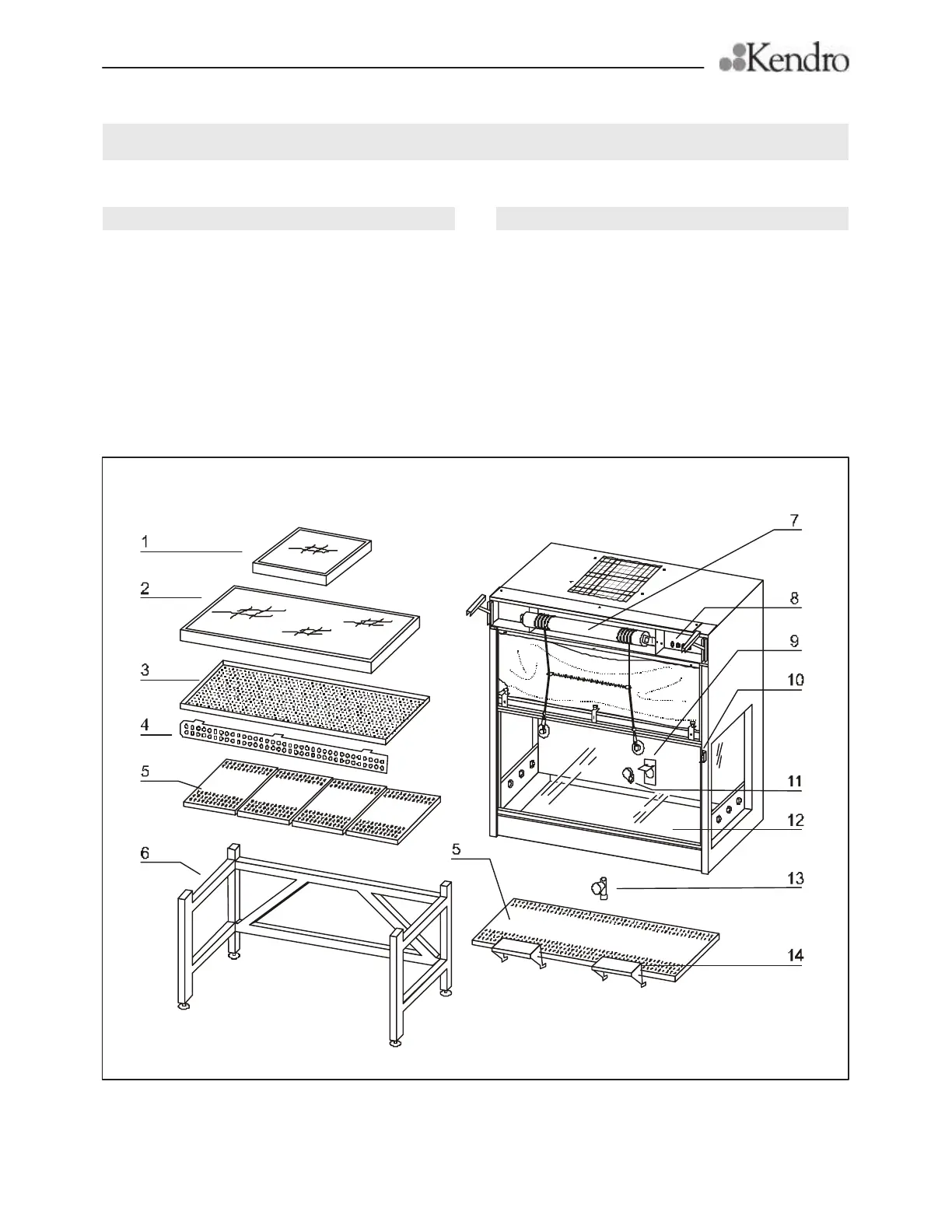

Fig. 1, Front view of the unit
Figure 1
Description of the unit components:
[8] Rubber grommets, 50046053, 50043857
[9] Outlet, 50057572
[10] Hood bracket, 50059900
[11] Flange outlet, 03711067
[12] Front window, 50059903
[13] Drain valve, 50046618
[14] Armrest 50056570 (2 pieces)
