Service Instructions HERAsafe HS/12/18
Valid: 05.2001 / 50060091 / A • 37 •
4. Replacement of defined spare parts
Figure 254.20 Installation of electronic components
All electronic components of the control panel are in-
serted in the appropriate receptacles and retained by
a clamping connection.
The electronic components in the control box are re-
tained with plug or screw connections.
The wires at the terminal strip are retained with
screws, the wires at the corresponding electronic
components are plugged on.
For the location of the electronic components, see
Figure 3.

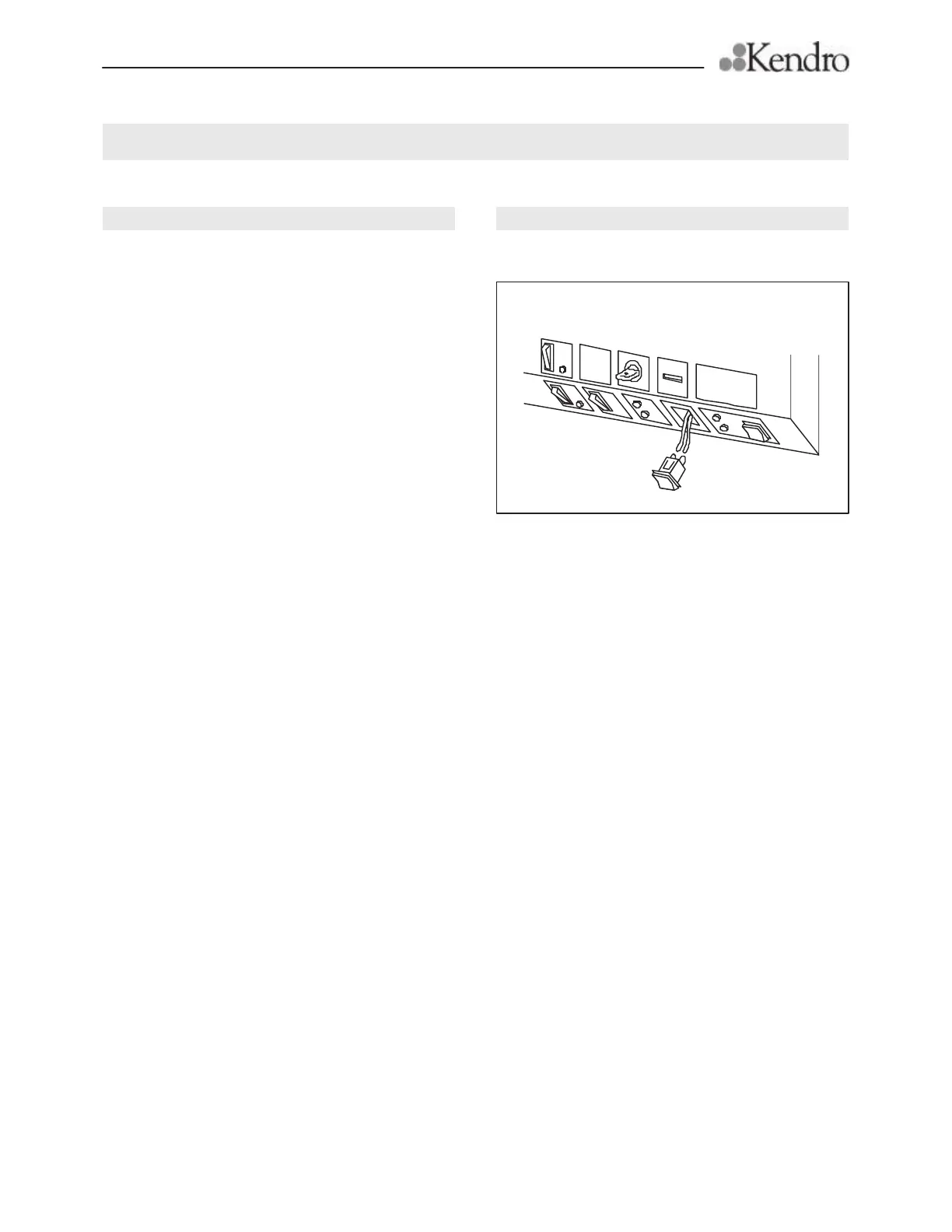

Fig. 25, Clamping connection at the control panel
