Page 11For technical questions, please call 1-888-866-5797.Item 57735

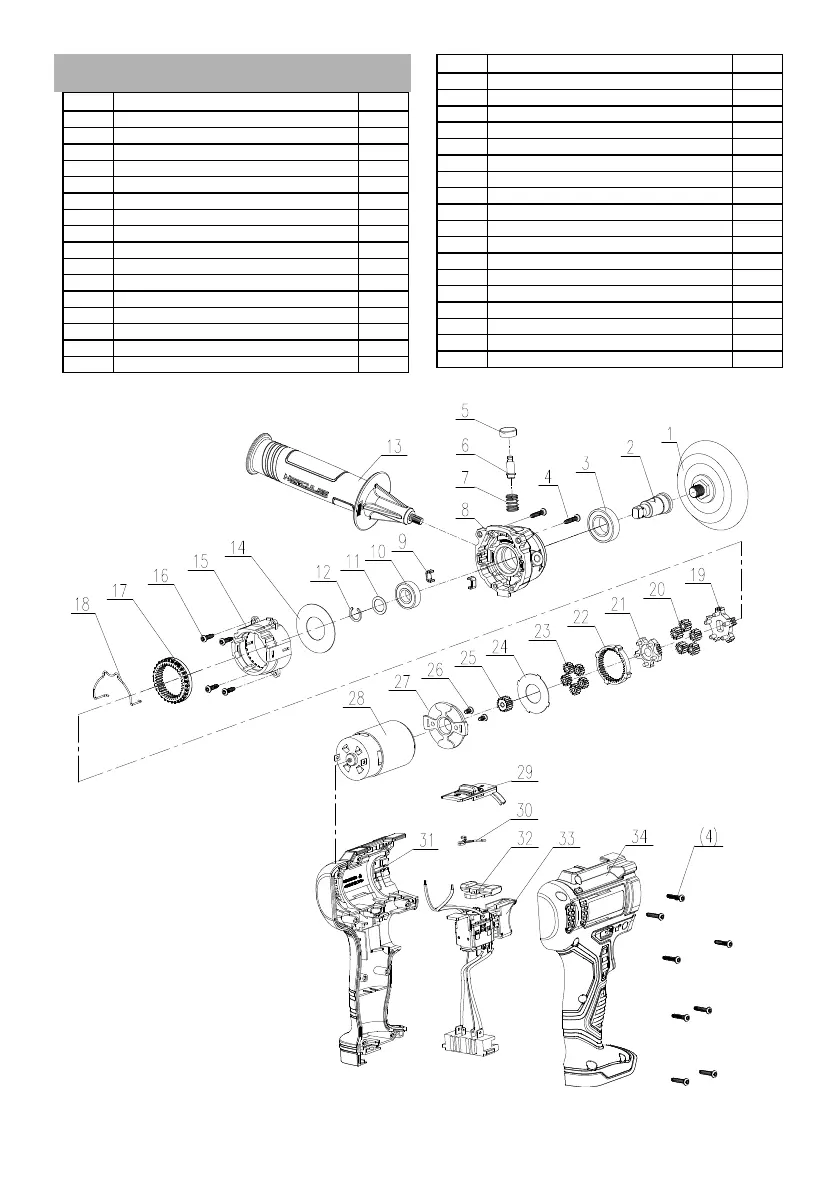

PARTS LIST AND DIAGRAM

Part Description Qty.

1 Backing Pad 1

2 Spindle 1

3 Deep Groove Ball Bearing 1

4 hex Self-Tapping Screw 10

5 Spindle Lock 1

6 Lock Pin 1

7 Spring 1

8 Front Housing 1

9 Rubber Plug 2

10 Deep Groove Ball Bearing 1

11 Flat Washer 1

12 Retaining Ring 1

13 Side Handle 1

14 Gasket 1

15 Gearbox 1

16 Screw 4

Part Description Qty.

17 Gear 1

18 Spring 1

19 Gear 1

20 Gear 1

21 Gear 1

22 Gear 1

23 Gear 1

24 Gasket 1

25 Gear 1

26 Cross-Slotted Pan Head Screw 2

27 Motor Mount Plate 1

28 Motor 1

29 Speed Selector 1

30 Steel Wire 1

31 Left Housing 1

32 Locking Shuttle 1

33 Electronic Components 1

34 Right Housing 1
