Regulation and servicing
for the technician

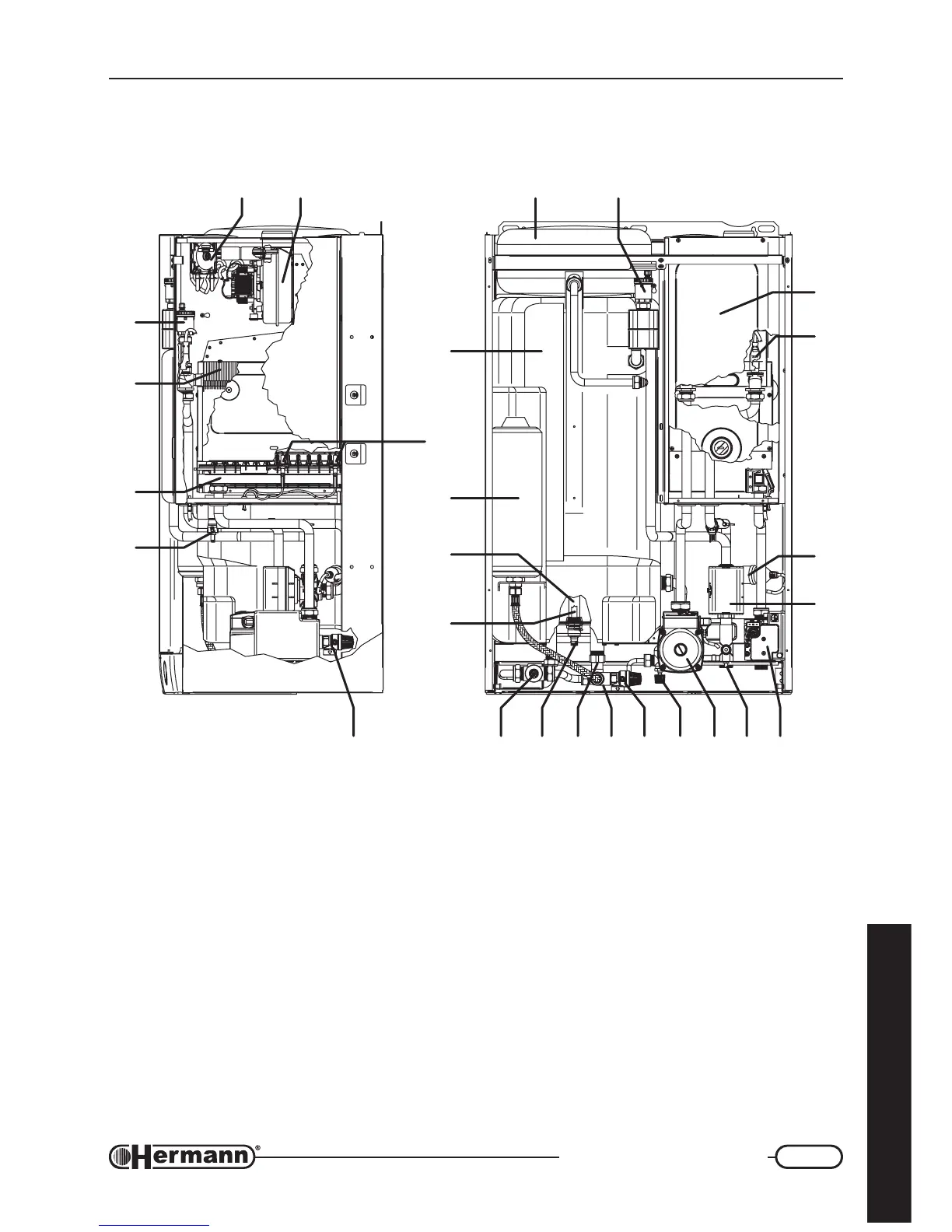

Components of the gas boiler
SUPERMASTER 24 SE - 30 SE
2
1
778R00
23
24
25
26
202122 19
3
4
5
15
16
17
18
627 7 8 9 10 11 12 13 14
1 Water heater tank
2 Ignition and flame control electrodes
3 DHW expansion vessel
4 Magnesium anode
5 Water heater tank temperature
sensor
6 DHW manual mixing valve
7 Water heater tank outlet tap
8 Litercounter
9 DHW filter
10 DHW Safety valve (8 bar)
11 System filling tap
12 Pump
13 Heating circuit drain tap
14 Gas valve
15 Motorized 3 way valve
16 Loss of water pressure switch
17 Safety thermostat
18 Sealed chamber
19 Automatic air outlet valve (DHW tank)
20 Heating circuit expansion vessel
21 Fan
22 Flue pressure switch
23 Automatic air outlet valve (heating circuit)
24 Primary exchanger
25 Burner
26 Heating system flow temperature sensor
27 Heating circuit safety valve (3 Bar)
