HERO 8 - Initial Set Up; Timer Switch Positions; Understanding the Timer; Timer Functionality

INITIAL SET UP
Please note:
The timer must be set up before
connecting any lighting or heaters,
and the unit must be connected
to power.
Gain acces to the timer by opening
the covers.

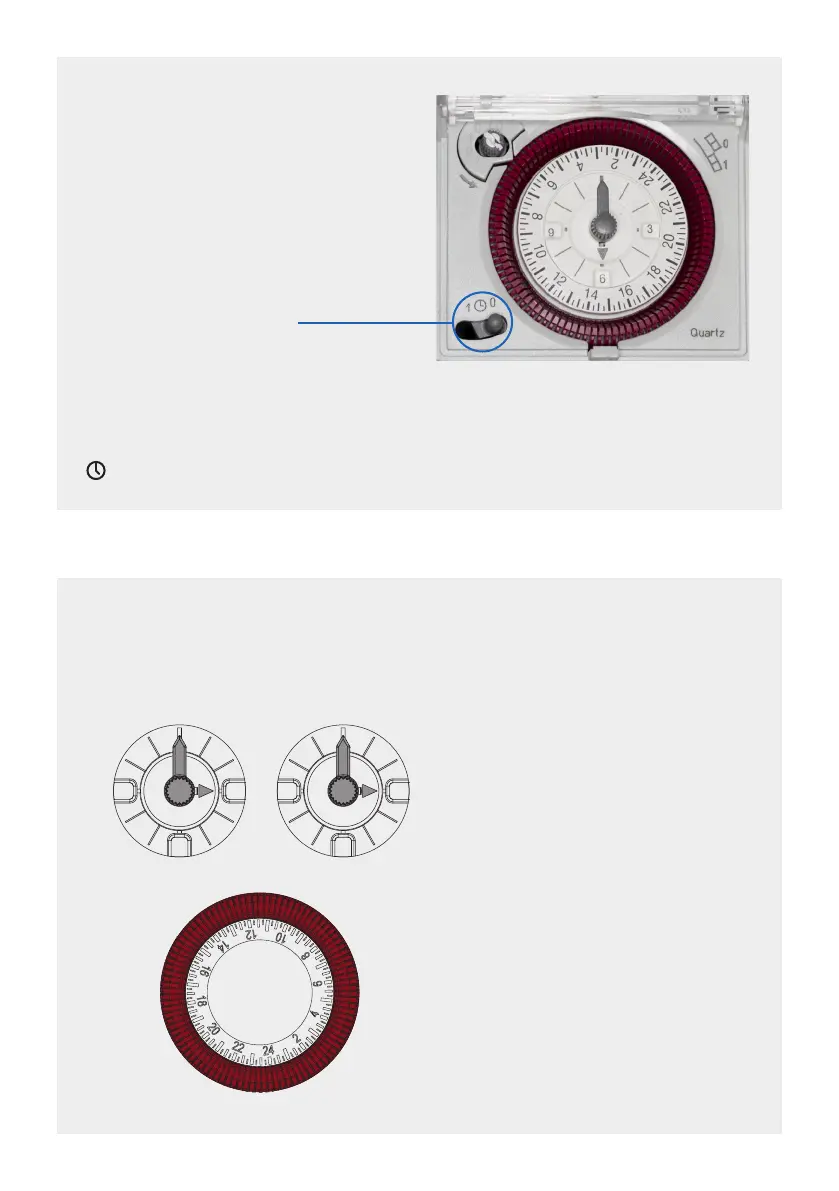

Ensure that the timer switch
is in the ‘0’ position.
UNDERSTANDING THE TIMER
The timer is dual purpose, it acts as the clock for the unit and a segmental timer to turn
the sockets ON and OFF at the desired times.
3
6
9
15
18
21
3
6
9
15
18
21
The inner part, is the clock for the unit.
This must be set so the timer turns on
and off at the correct times.
The outer part of the timer has
segments that are used to
program the ‘ON’ times.
‘0’ position = Lighting sockets OFF / Heater sockets ON.
‘1’ postiton = Lighting sockets ON / Heater sockets OFF.
position = the Lighting & Heater sockets will switch ON / OFF based on the timer.
