Pull the rider seat back and up.
Remove two bolts (4) from the rider seat.
Pull the pillion seat back and up.
(4) Bolts
4
22
(5) Lug
(6) Recess

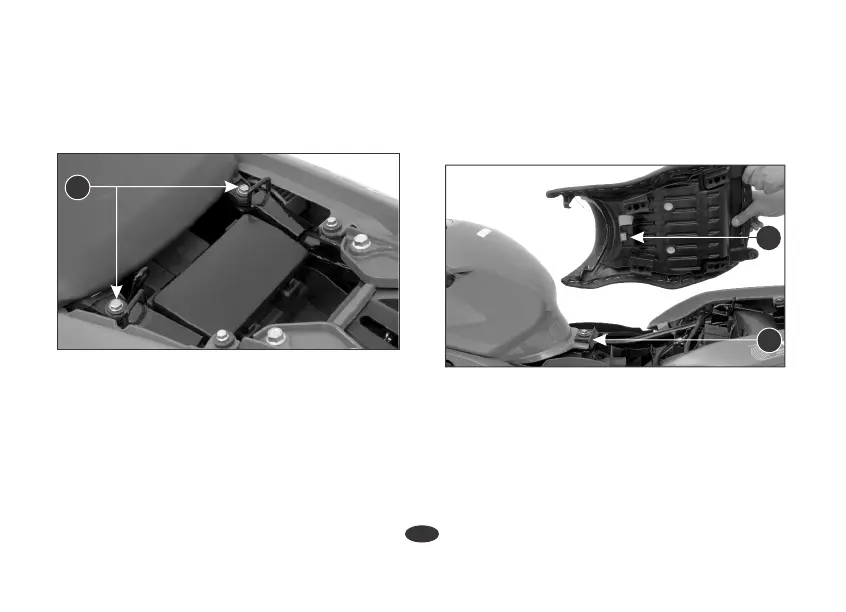

To install, engage the lug (5) of the rider
seat with the recess (6) below the fuel tank
and slide the seat to the front. Tighten the
two bolts of the rider seat.
5
6
For the pillion seat insert the lugs on the
seat into the hooks (7) on the frame and then
push down on the pillion seat until the lock
clicks.
