Elettromedia - 62018 Potenza Picena (MC) Italy - T +39 0733 870 870 - F +39 0733 870 880 - www.elettromedia.it
All Specifications Subject to Change Without Notice_16.A
13
Power Supply
Size / Weight
Amplifier Stage
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 25 A
Idling current (power ON/OFF): 2 A / 0.04 mA
Consumption @ 2 Ω, 14.4 VDC
(Max Musical Power): 30 A
Remote In: 7 ÷ 15 VDC - 1 mA
ART
TM
: Automatic Remote Turn-On/Off with Speaker-In
Inputs / Outputs / Filter
INPUTS: PRE IN / SPEAKER IN
FRONT Ch. filters FULL: Yes
Hi-Pass: 50 ÷ 5k Hz @ 12 dB/Oct.
REAR Ch. filters FULL: Yes
Hi-Pass: 50 ÷ 5k Hz @ 12 dB/Oct.
Band-Pass: 50 ÷ 500 Hz (Hi) @ 12 dB/Oct.
50 ÷ 5 kHz (lo) @ 12 dB/Oct.
SUB Ch. filter LO-PASS: 50 ÷ 500 Hz @ 24 dB/Oct.
SUBSONIC (on/off): 25 Hz @ 24 dB/Oct.
BOOST 50 Hz (adjust): (0 ÷12) dB
Remote Volume Control: (-50 ÷ 6) dB
Max size (mm / in.): 345 x 190 x 50 / 13.58 x 7.48 x 1.97
Weight (kg / lb.): 2,61 / 5.75
Features:
Distorsion - THD (100 Hz @ 4 Ω): 0.02 %
Bandwidth FRONT/REAR: 10 ÷ 50k Hz
Bandwidth SUB: 10 ÷ 500 Hz
S/N Ratio (A weighted @ 1 V): 100 dB
Damping factor (100 Hz @ 4 Ω) FRONT/REAR: 100
Damping factor (100 Hz @ 4 Ω) SUB: 250
Pre-In sensitivity: 0.2 ÷ 5 VRMS
Speaker-In sensitivity: 0.8 ÷ 20 VRMS
Load impedance (MIN) @ 5 Ch: 2 Ω
@ 3 Ch: 4 Ω + 4 Ω + 2 Ω
Output Power (RMS) @ 14.4 VDC, THD 1%:
5 Ch: 55 W x 4 + 160 W x 1 (4 Ω)
5 Ch: 90 W x 4 + 280 W x 1 (2 Ω)
3 Ch: 180 W x 2 (4 Ω) + 160 W x 1 (4 Ω)
3 Ch: 180 W x 2 (4 Ω) + 280 W x 1 (2 Ω)
Output Power (RMS) @ 14.4 VDC, THD 10%:
5 Ch: 65 W x 4 + 200 W x 1 (4 Ω)
5 Ch: 105 W x 4 + 330 W x 1 (2 Ω)
3 Ch: 210 W x 2 (4 Ω) + 200 W x 1 (4 Ω)
3 Ch: 210 W x 2 (4 Ω) + 330 W x 1 (2 Ω)
CEA 2006-A Ratings:
RMS Power (4 Ω, ≤ 1 % THD + N, 14.4 V):
50 W x 4 Ch + 150 W + 1 Ch
S/N Ratio (ref. 1 W output):
(50 W Ch) 83 dBA
(150 W Ch) 85 dBA
1. Compact design built from extruded aluminum heatsink with the top side
ensuring effective transfer of the heat.
2. Special balanced high-noise rejection input circuitry on the Pre-In or
Speaker-In inputs.
3. Speaker-In (for OEM head units) and RCA-In (for Aftermarket head units) inputs.
4. Selectable ART, Automatic Remote Turn-On/Off function, automatically turns
on and off the amplifier when the OEM radio turns on and off
(can be enabled/disabled, with only Speaker-In inputs).
5. Power supply featuring multiple winding transformer, Low-ESR 105°C capacitors,
D-Class 2 Ω stable output stage
6. 5 ch/3 ch operation mode (selectable), to create a five-channel system
(with sub), or a powerful sub + front three-channel system.
7. Versatile front and rear filters, providing the ability to build Hi-Pass
front + rear system or multichannel woofer + tweeter system, both including sub.
8. Bass Boost (50 Hz) adjustable to 12 dB, to increase the subwoofer punch.
9. Selectable full range front + rear power outputs.
10. 24 dB continuous adjustable (50 to 500 Hz) Lo-Pass subwoofer filter.
11. SUBSONIC filter (24 dB - 25 Hz), removes very low subsonic frequencies
from music signal to avoid damages to the subwoofer.
12. Optional Remote Volume Control (HRC); providing the ability to adjust
subwoofer volume level from the dashboard.

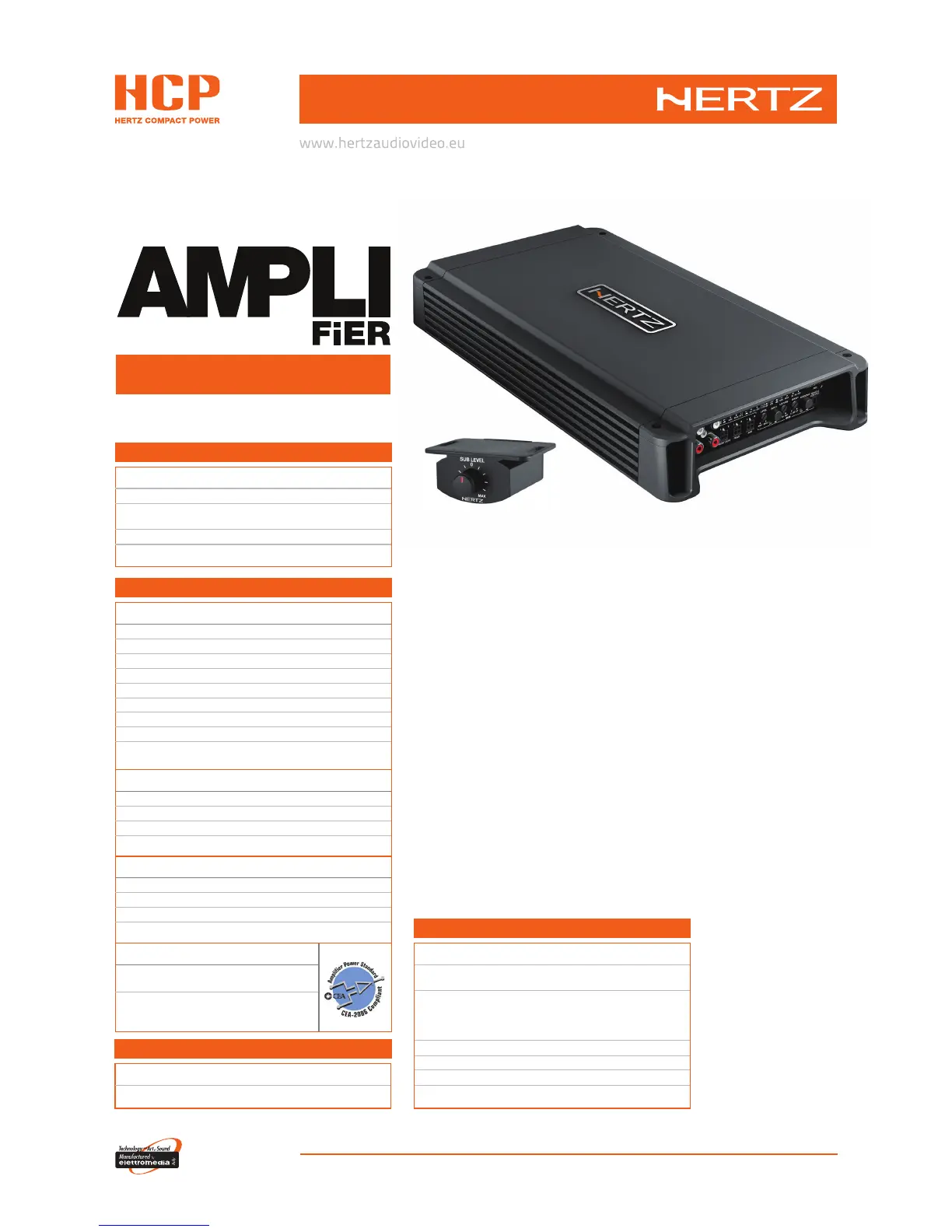

HCP 5D
1500 W
MAX POWER
FIVE CHANNEL D-CLASS AMPLIFIER WITH
CROSSOVER
HRC
OPTIONAL
