Heta INSPIRE 40 - 2.13 Mounting the frame

23
For flue outlet installation 45° backwards, turn the flue pipe connector 180°.
2 x M6x25
0008-1115 -
1
2

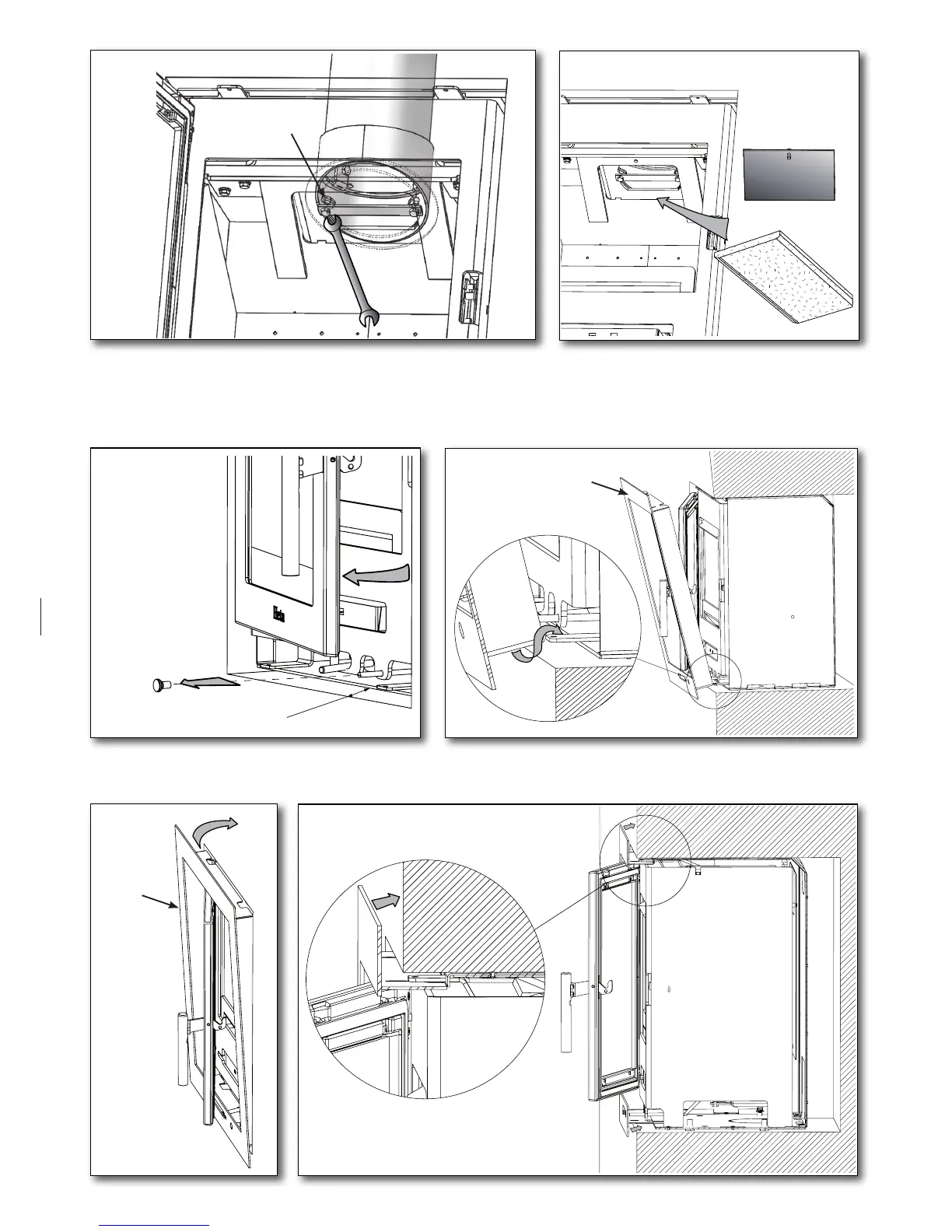

2.13 Mounting the frame
A
B
-
C
Flat wall model is given. Fitting for all four models.
Classic floor model
A = 7 mm
Flat floor model
A = 39 mm
Flat wall model
A = 39 mm
Hidden wall model
A = 47 mm
Flat wall model
Flat
wall model
3
4
1 2
3
4
