PAGE 52 © Copyright Hewland Engineering Limited 2001-2008

OUTPUT TRIPODS

AVAILABLE

FTR-218-FD

CASING

FTR JFR

Position

SIDEPLATE ARRANGEMENT SIDEPLATE ARRANGEMENT

# Part No Description Part No Description

7 BEA-171 TAPER ROLLER BEARING BEA-171 TAPER ROLLER BEARING

20 FTR-205 SIDEPLATE JFR-205 SIDEPLATE

21 FTR-205-1 SIDEPLATE SHIM FTR-205-1 SIDEPLATE SHIM

22 FTR-205-2 SIDEPLATE SPACER FTR-205-2 SIDEPLATE SPACER

69 LIP-042 LIPSEAL LIP-042 LIPSEAL

91 ORI-203 O-RING ORI-189 O-RING

There is a Gaitor

kit option with

these tripods

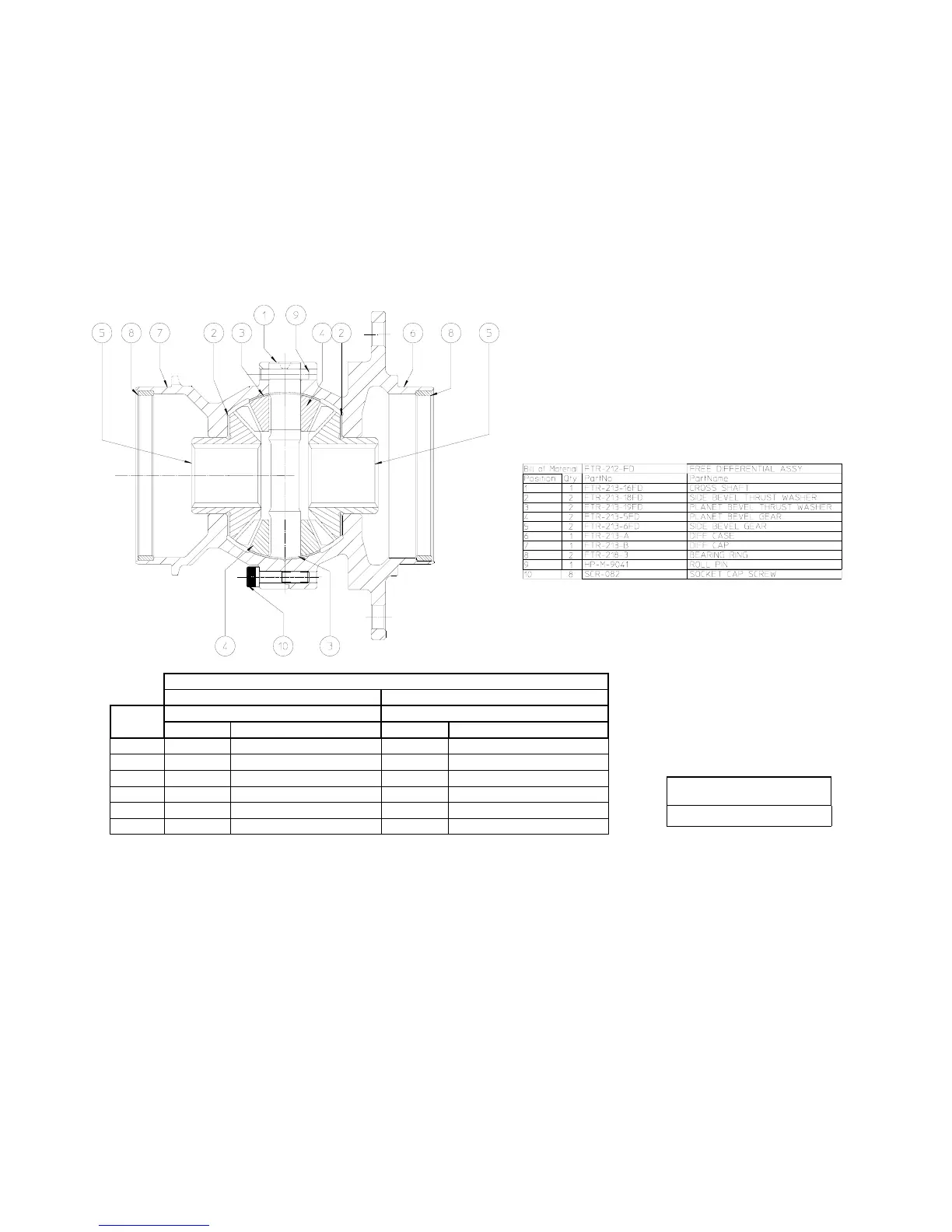

FTR-212-FD FREE DIFFERENTIAL

ASSEMBLY AS USED IN STAR

MAZDA SPECIFICATION

Fig.25

# REFER TO PAGES 24-26,36-38(6sp) OR 44-46(5sp).
