FTR-201 Maincase
James Batchelor
(Design Engineer)

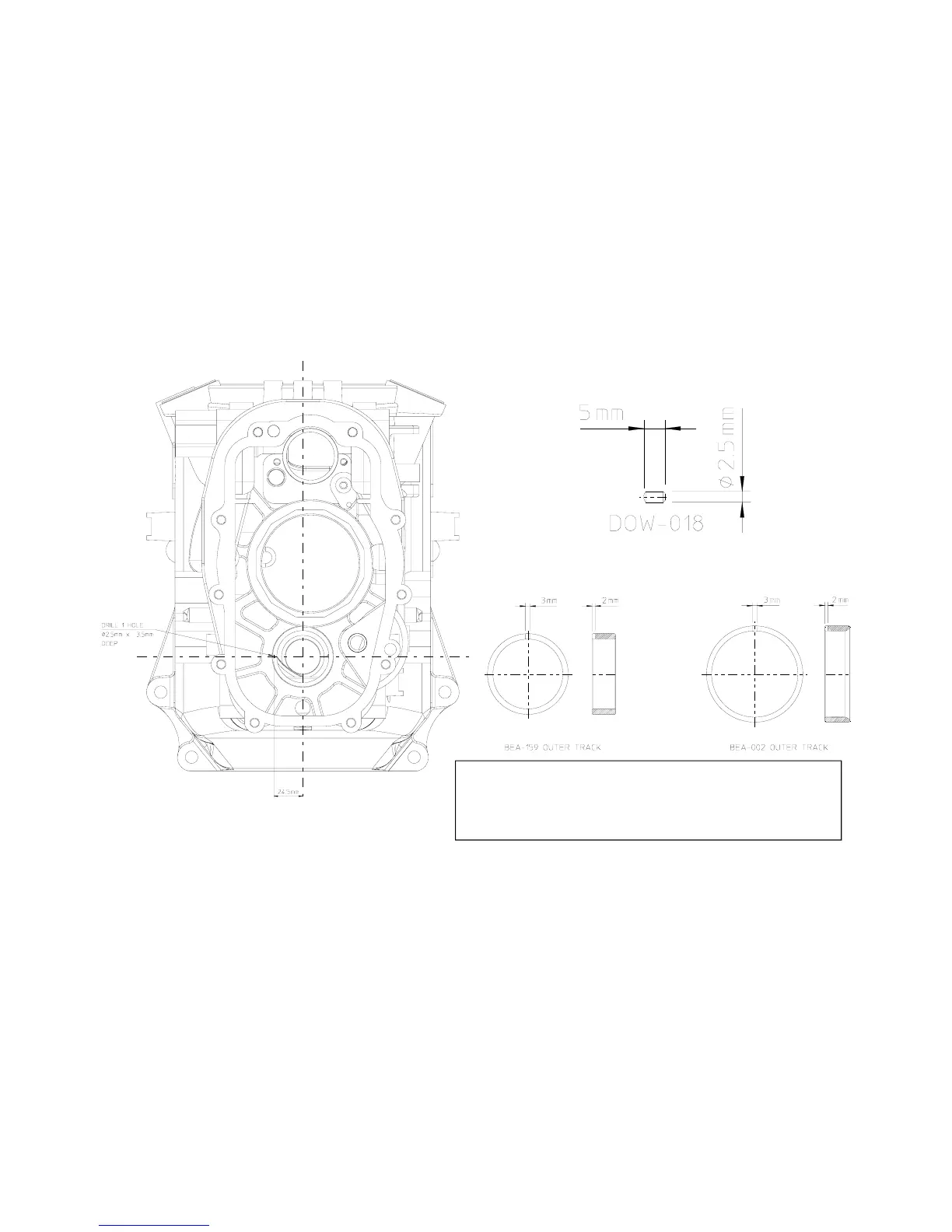

The bearings (BEA-159 & BEA-002) will also require modifica-
tion if the anti-rotation dowels are to be fitted. The outer tracks
of the bearings will need a 3mm wide x 2mm deep slot ma-
chined on the seating face (as shown below).
Fig.46
