Hewland FTR - Fig.36 LD-212

To Next Page

To Previous Page

PAGE 63 © Copyright Hewland Engineering Limited 2001-2009

Fig.36

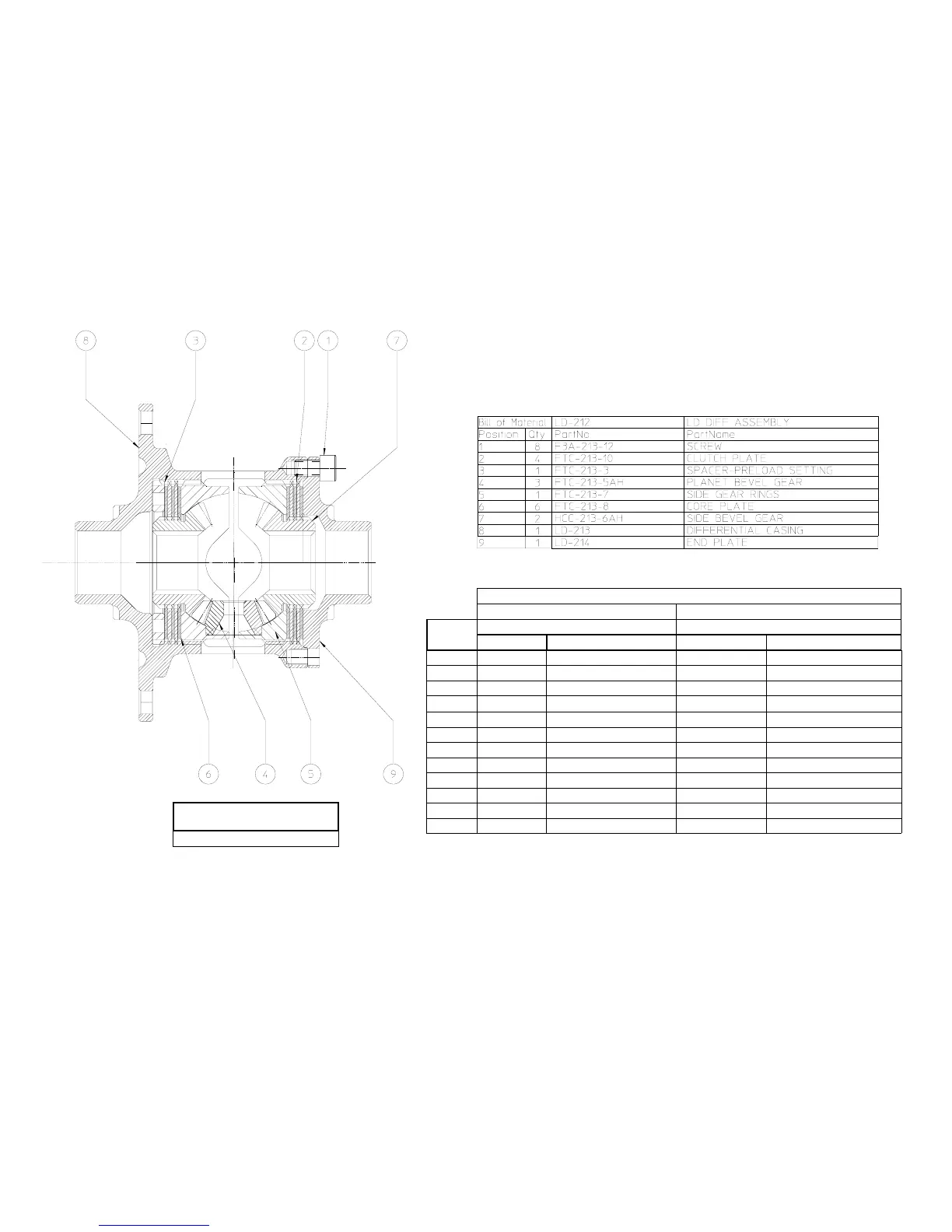

LD-212 LIMITED SLIP DIFFERENTIAL FOR INBOARD BRAKE DISCS

OUTPUT FLANGES

AVAILABLE

CS-1721

CASING

FTR JFR

Position

SIDEPLATE ARRANGEMENT SIDEPLATE ARRANGEMENT

# Part No Description Part No Description

7 HC9-205-1 BEARING HC9-205-1 BEARING

20 FTR-205 SIDEPLATE JFR-205 SIDEPLATE

21 HC9-206-1 SHIM HC9-206-1 SHIM

91 ORI-203 O-RING ORI-189 O-RING

166 ORI-006 O-RING ORI-006 O-RING

169 FT-219-1A CIRCLIP FT-219-1A CIRCLIP

181 FTR-205-4 LH BEARING SPACER FTR-205-4 LH BEARING SPACER

182 FTR-205-3 SPACER FTR-205-3 SPACER

183 HC9-205-3 BALL BEARING HC9-205-3 BALL BEARING

184 CS-1628 BEARING CARRIER CS-1628 SBEARING CARRIER

185 HC9-205-4 OILSEAL HC9-205-4 OILSEAL

187 SPA-073 SPACER SPA-073 SPACER

# REFER TO PAGES 24-26,36-38(6sp) OR 44-46(5sp).
