PAGE 56 © Copyright Hewland Engineering Limited 2001-2008

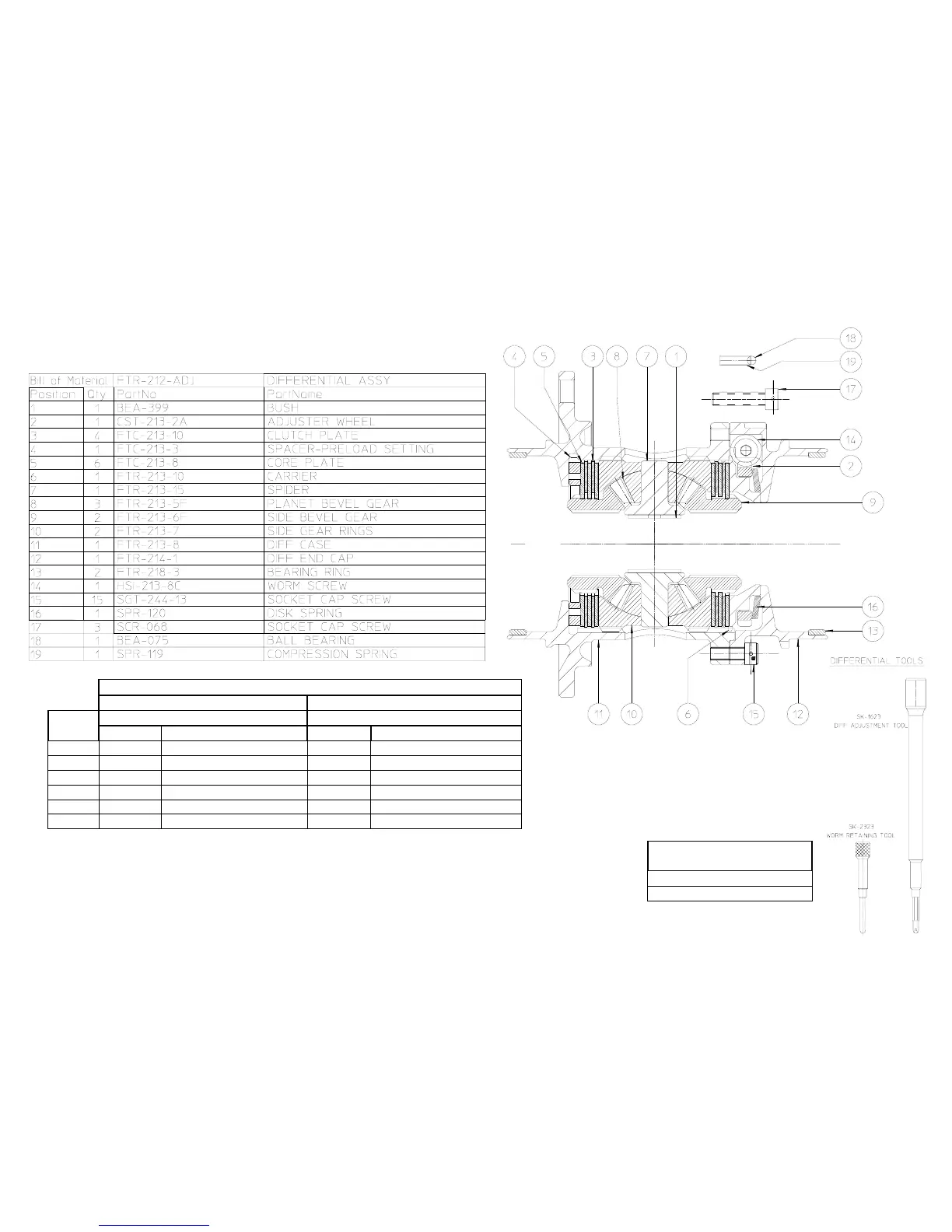

Fig.29

CASING

FTR JFR

Position

SIDEPLATE ARRANGEMENT SIDEPLATE ARRANGEMENT

# Part No Description Part No Description

7 BEA-171 TAPER ROLLER BEARING BEA-171 TAPER ROLLER BEARING

20 FTR-205 SIDEPLATE JFR-205 SIDEPLATE

21 FTR-205-1 SIDEPLATE SHIM FTR-205-1 SIDEPLATE SHIM

22 FTR-205-2 SIDEPLATE SPACER FTR-205-2 SIDEPLATE SPACER

69 LIP-042 LIPSEAL LIP-042 LIPSEAL

91 ORI-203 O-RING ORI-189 O-RING

FTR-212-ADJ ADJUSTABLE DIFFERENTIAL ASSEMBLY

There is a

Gaitor kit

option

with these

tripods

OUTPUT TRIPODS

AVAILABLE

FTR-218-15

FTR-218-16

# REFER TO PAGES 24-26,36-38(6sp) OR 44-46(5sp).
