HH Tensor TRE-112A - Connector Wiring

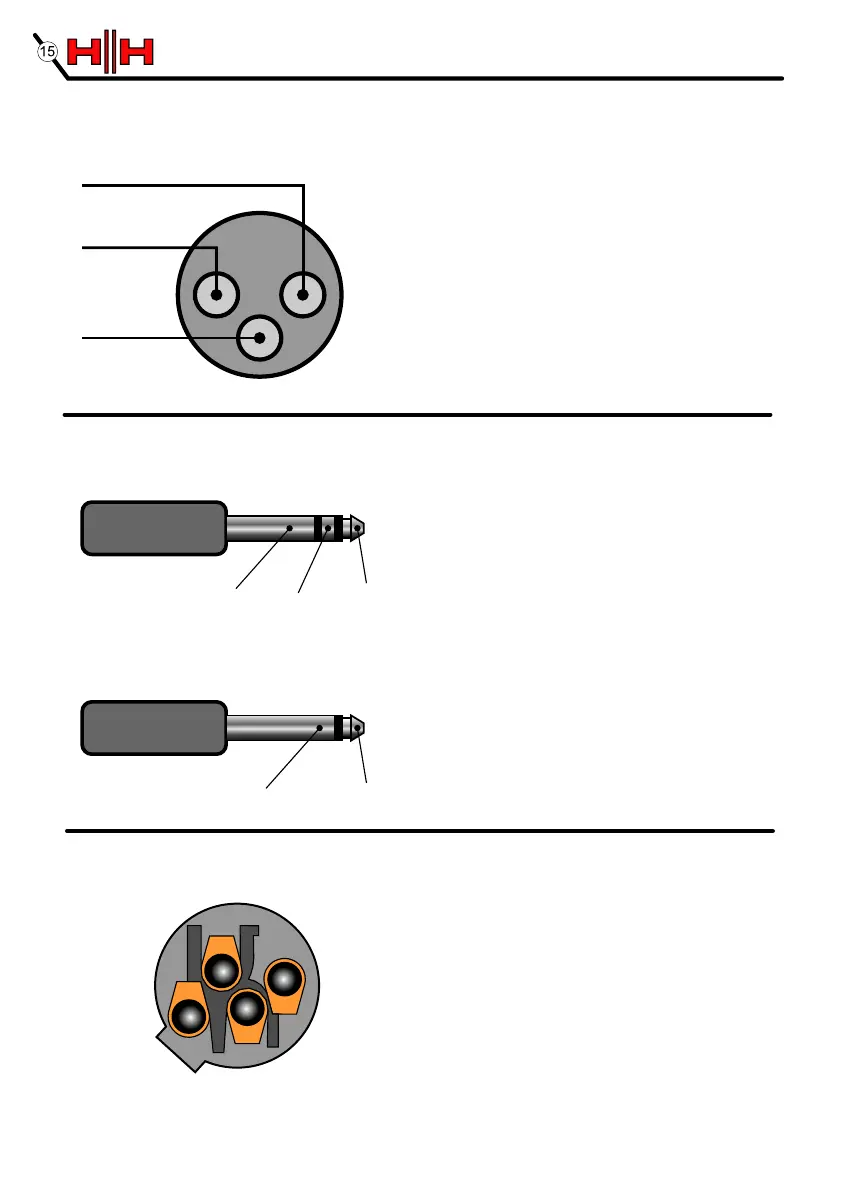

CONNECTOR WIRING
1
2
3
+
-
Gnd
+
+
-
Gnd
Gnd
2-
2+
1-
1+
Balanced XLR
6.3mm Balanced Jack
6.3mm Unbalanced Jack
Speakon™
TIP
RING
SLEEVE
TIP
SLEEVE
HOT
COLD
GROUND
HOT
GROUND
1+ POSITIVE
1- NEGATIVE
2+ NOT USED
2- NOT USED
1 GROUND
2 HOT
3 COLD
