HID Mercury LP1502 User Manual

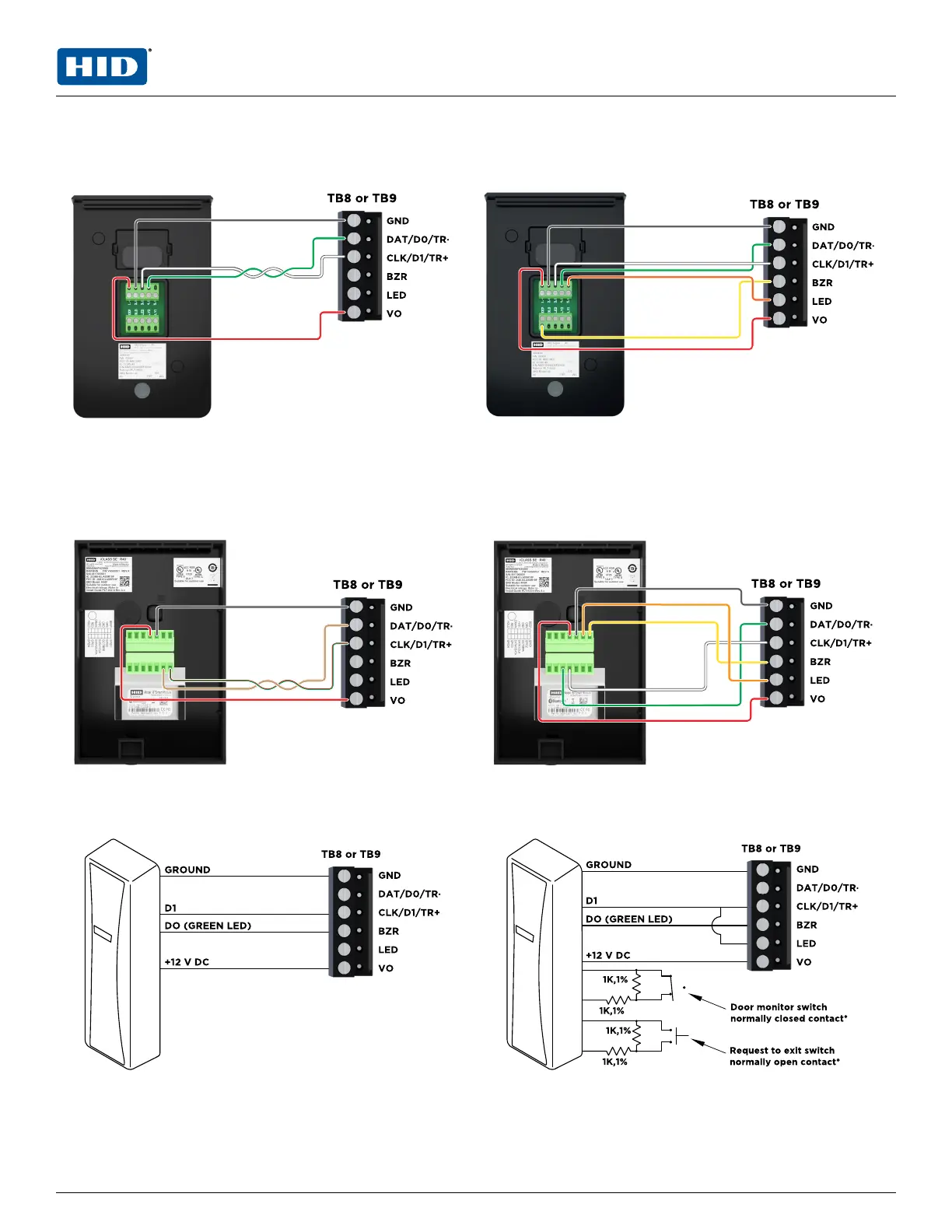

2.7.1 Reader wiring diagrams
Typical reader 1
(OSDP installation)
Typical reader 1
(Wiegand or Clock/Data installation)


Typical reader 2
(OSDP installation)
Typical reader 2
(Wiegand or Clock/Data installation)
 
Typical unsupervised F/2F reader Typical supervised F/2F reader
 Jumper D1 to LED on supervised F/2F reader
*Inputs on supervised F/2F readers may be unsupervised or supervised (supervised shown).
PLT-05244, A.3 13 June 2021
