hidglobal.com An ASSA ABLOY Group brand
This Installation Guide is for informational purposes only. HID makes no warranties, expressed or implied, in this summary. Company, product names and data used in sample output
are fictitious. Specifications are subject to change without notice.
© 2014 - 2015 HID Global Corporation/ASSA ABLOY AB. All rights reserved. HID, the HID logo, and iCLASS SE are trademarks or registered trademarks of HID Global in the U.S.
and/or other countries. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners.
INSTALLATION GUIDE
iCLASS SE/multiCLASS SE PLT-01579 A.3
R10E, RP10E, R15E, RP15E, R30E, RP30E, R40E, RP40E, RK40E, RPK40E, R10MA, RP10MA, RP15MA, R40MA, RP40MA, RPK40MA

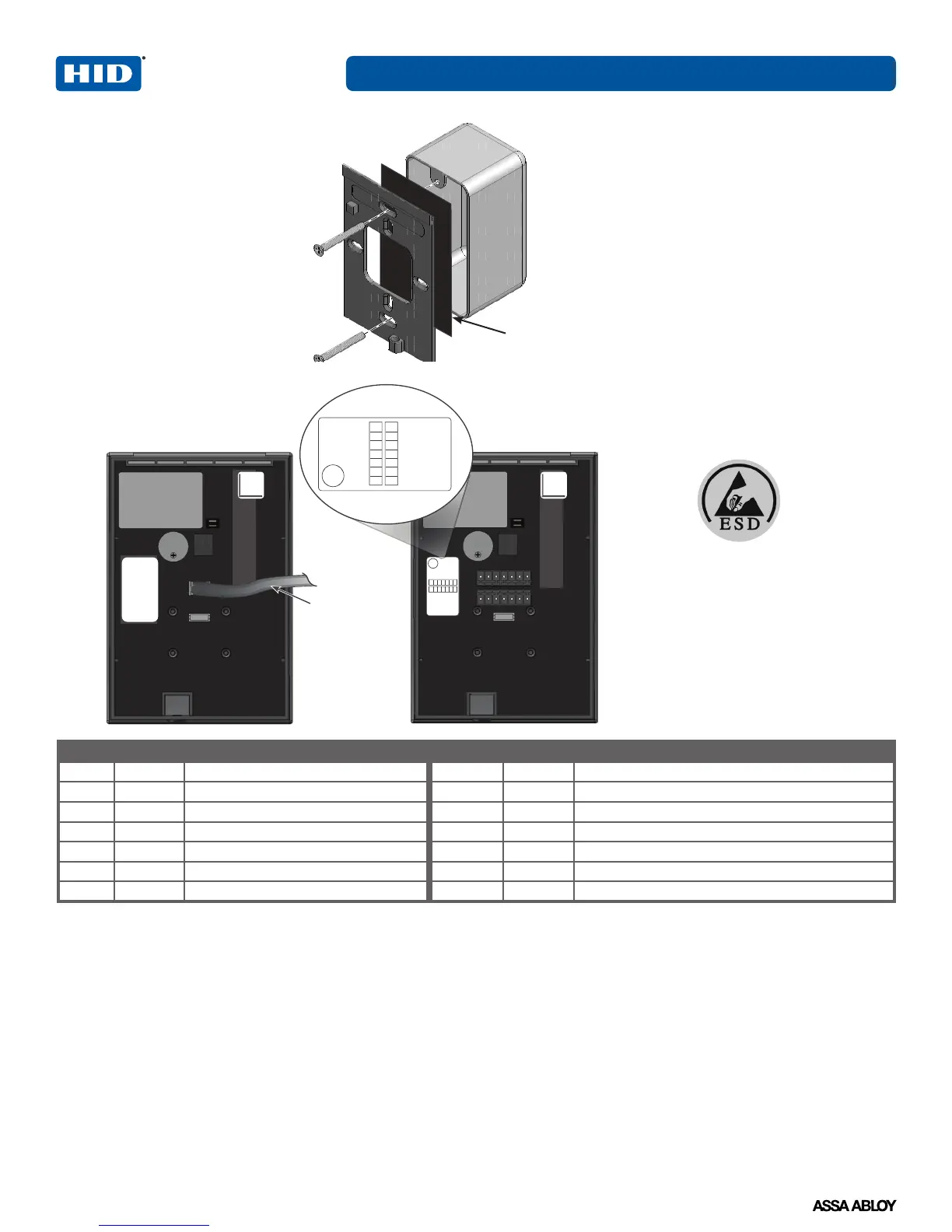

Page 2
Installation
1 Mounting
2 Wiring
Optional Features
Open Collector Output - Controls an external device (16 VDC Max) operating in Host Mode only. Sink - 40mA / Source - 1mA. See the
iCLASS Application Note for details.
Optical Tamper - A configuration card is necessary to activate the Optical Tamper. Once activated, and when the mounting plate is removed, the Optical
Tamper is activated. Contact HID Technical Support for Optical Tamper options.
Configuration Cards - With the use of configuration cards, the reader can be modified to meet the specific requirements of an installation. Configuration
options include; audio visual, CSN outputs and keypad outputs (keypad models only). Contact HID Technical Support for all reader configuration options.
Hold Input - when asserted, this line either buffers a card or disables a card read until released, as configured.
Junction box not included
Gasket optional
P1
P2
18 in
(0.46 m)
BEEP
GRN
GND
+VDC
DRAIN
RED
HOLD
GPI01
GPI02
OC/TMPR
DATA1/CLK
DATA0/DATA
GPI03
GPI04
BEEP
GRN
GND
+VDC
DRAIN
RED
HOLD
GPI01
GPI02
OC/TMPR
DATA1/CLK
DATA0/DATA
GPI03
GPI04
BEEP (YEL)
GRN (ORG)
GND (BLK)
+VDC (RED)
DRAIN (BARE)
RED (BRN)
HOLD (BLU)
GPIO1 (RED/GRN)
GPIO2 (TAN)
OC/TMPR (VIO)
DATA1/CLK(WHT)
DATA0/DATA (GRN)
GPIO3 (PINK)
GPIO4 (GRAY)
ATTENTION
Observe precautions for handling
ELECTROSTATIC SENSITIVE DEVICES
Note: Previous iCLASS readers had reversed
RS-485 wiring ( P2-7 & P2-6 - A & B).
When upgrading to an iCLASS SE reader,
ensure proper connections as dened
below.
* Tamper Output. When activated, output syncs to ground (default).
** Dependent upon reader configuration.
See HTOG Wiegand and Clock-and-Data configurations for more information.
Pigtail Terminal Description Pigtail Terminal Description
Yellow P1-1 Beeper Input Red / Green P2-7 GPIO1 (RS485-FDX/HDX-A)
Orange P1-2 LED Input (GRN) Tan P2-6 GPIO2 (RS485-FDX/HDX-B)
Black P1-3 Ground (RTN) Violet P2-5 * Open Collector Output / Tamper
Red P1-4 +VDC White P2-4 **Wiegand Data 1 / Clock
Drain P1-5 Unused Green P2-3 **Wiegand Data 0 / Data
Brown P1-6 LED Input (RED) Pink P2-2 GPIO3 (RS485-FDX-Z)
Blue P1-7 Hold Input Gray P2-1
GPIO4 (RS485-FDX-Y)
