Basic components
Fuel tank
If your model included a fuel tank, its parts and functions are as follows.

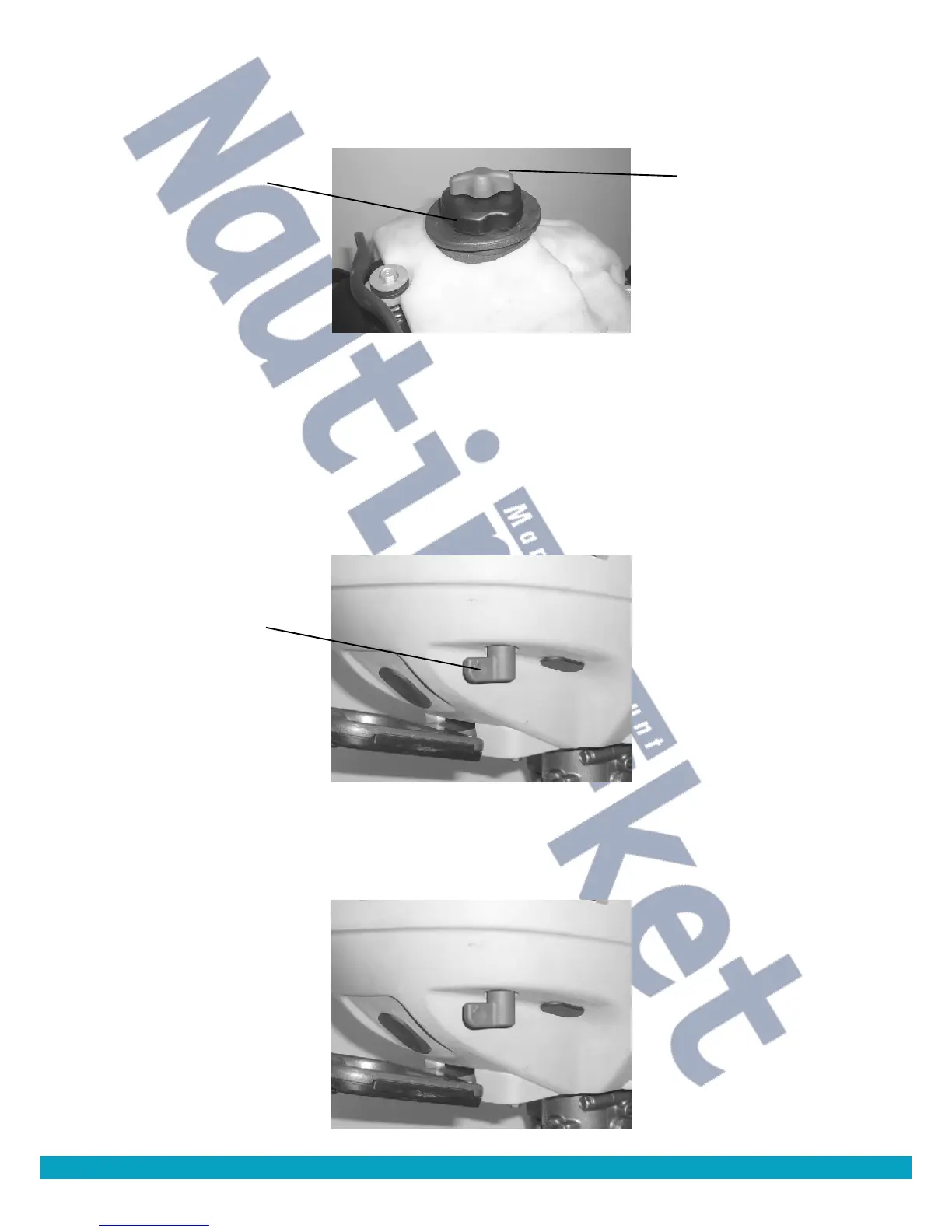

1 Fuel tank cap
2 Air vent screw
Fuel tank cap
This cap seals the fuel tank. When removed, the tank can be lled with fuel. To remove the cap,
turn it counterclockwise.
Air vent screw
This screw is on the fuel tank cap. To loosen the screw, turn it counterclockwise.
Fuel cock
The fuel cock turns on and off the supply of fuel from the integral fuel tank to the engine.
1 Fuel cock
Close
To stop fuel ow to the engine, turn the lever to close position.
Always turn the lever close position when the engine is not running.
1
1
2
7
