Easy HD Expressway!
WWW.HIDES.COM.TW 7

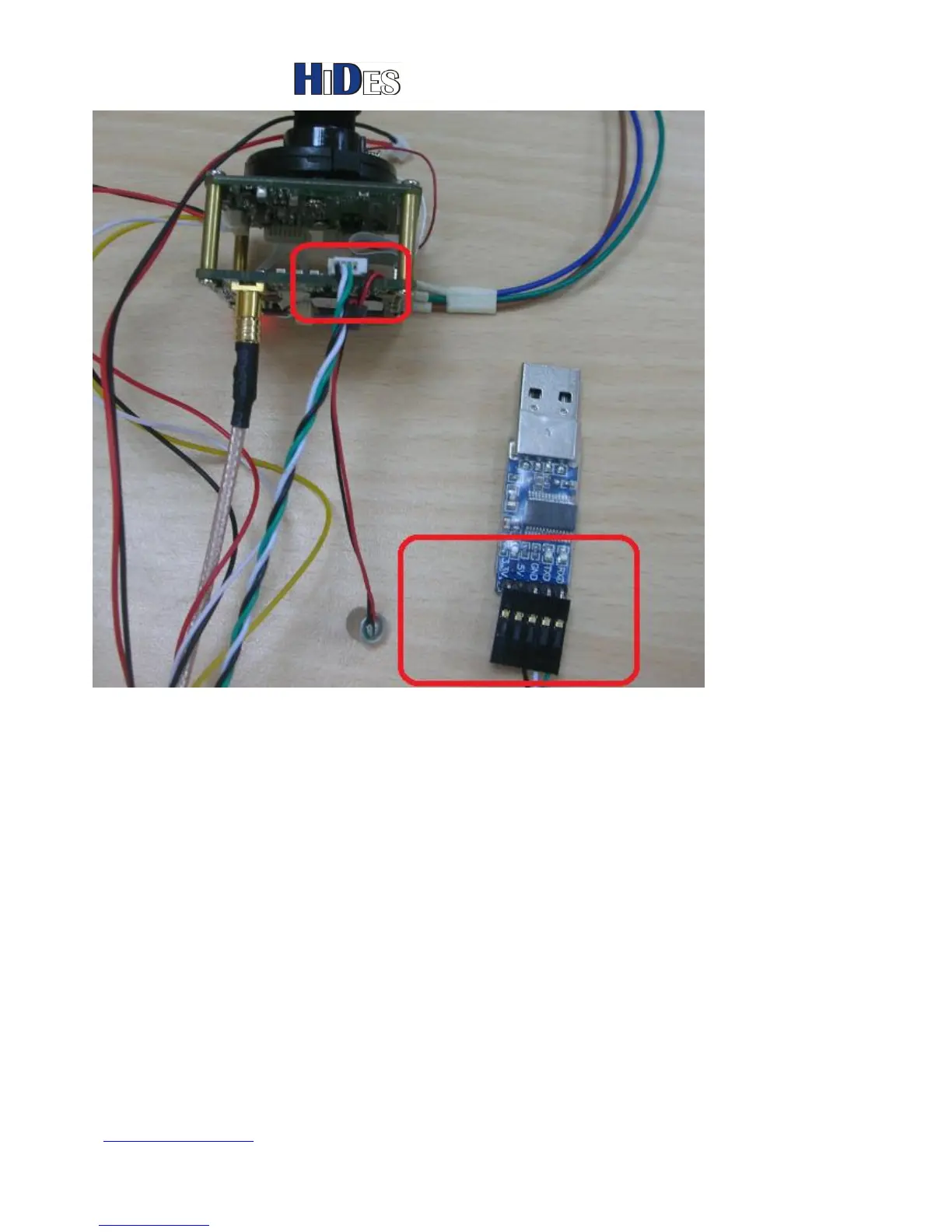

Green wire: RXD
White wire: TXD
Black wire: GND
Monitor Boot Messages
When you connect the USB UART dongle to a Laptop PC, and driver is well installed, you may use
any UART terminal application (for example, Tera Term) or the DC-105 configuration tool
iTE_SerialTool.exe (described below) to monitor debug message.
The default communication parameters are 115200,n,8,1.
