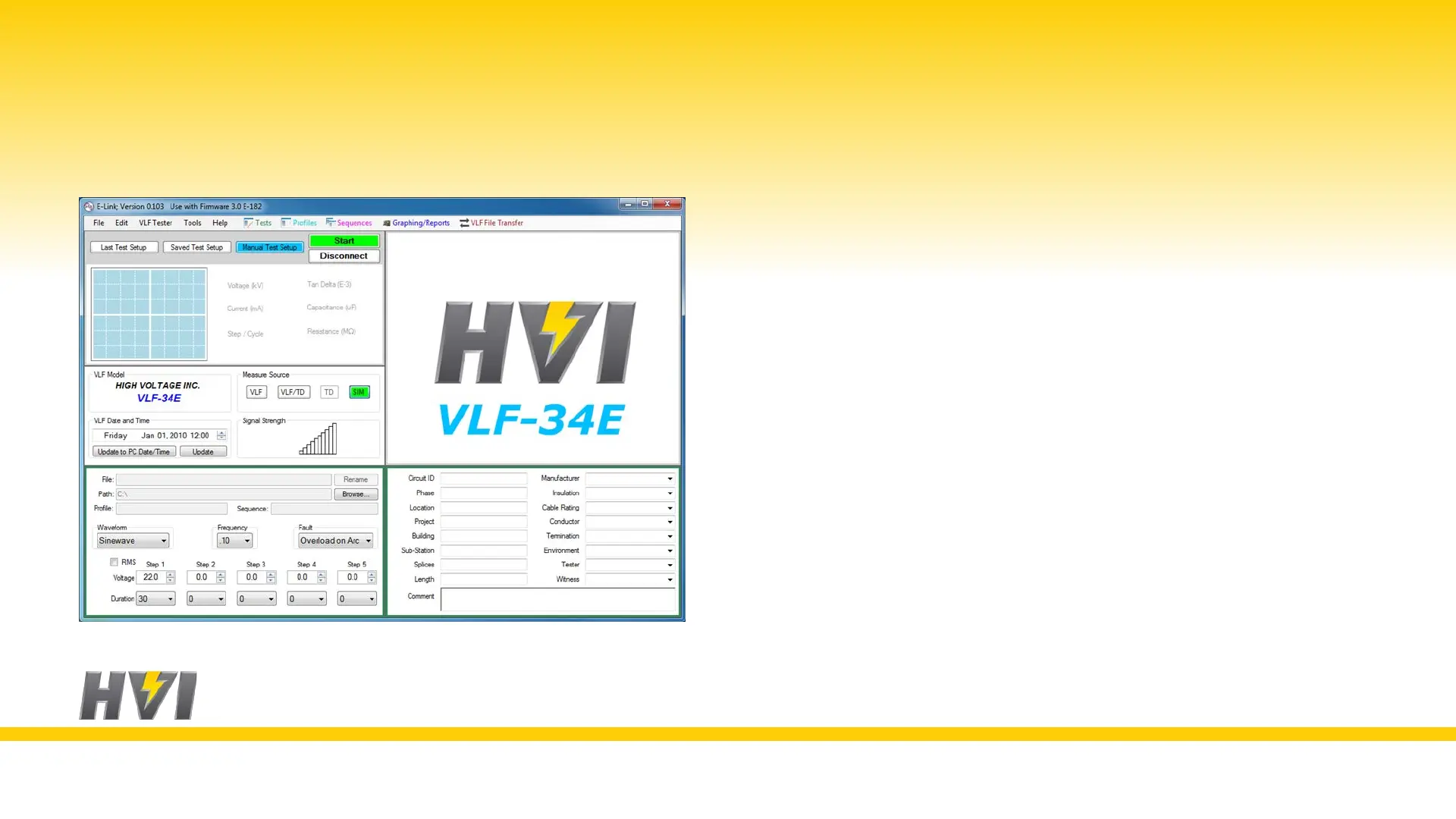

Step 9: Input The Parameters Into E-Link
1. Choose “VLF” as your “Measurement Source”
2. Choose your desired “Waveform”
1. Sinewave
2. Square Wave
3. Positive DC
4. Negative DC
3. Choose your output frequency (.1Hz to .01Hz)
4. Choose voltage step 1
1. Set up first test voltage per IEEE 400.2-2013
2. Set duration for 30 minutes to 1 hour
3. Repeat for step 2 through 5 if need
5. Choose desired “Fault” condition
1. “Overload on Arc” to have VLF power down if failure occurs
2. “Burn on Arc” to have VLF condition fault if failure occurs
6. Click the green “Start” Button
