4
Installing the RocketU 1344D Host Adapter
Note: Make sure the system is powered-off before installing the host adapter.
1. Open the system chassis and locate an unused PCI-Express
x4/x8/x16 slot.

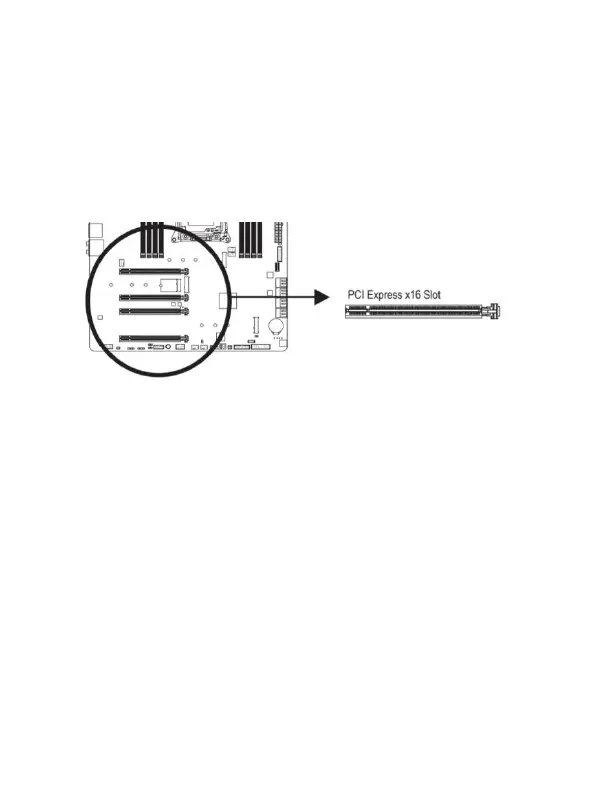

Figure 1 - PCIe x16 slot diagram
2. Gently insert the RocketU 1344D into the PCI-Express slot, and
secure the bracket to the system chassis.
3. After installing the adapter, attach the USB device with USB cables.
4. Power up the USB Device external power supply.
Note: If the external power supply is not powered on, the USB Device
may drop offline or remain undetected, which could lead to data
loss.
