HIK VISION DS-K4H450 Series User Manual

Title:
DS-K4H250/450/258 series magnetic lock
connect to DS-K2800 series Access Controller
Version:
v1.0
Date:
01/11/2018
Product:
Access Control Device
Page:
2 of 9

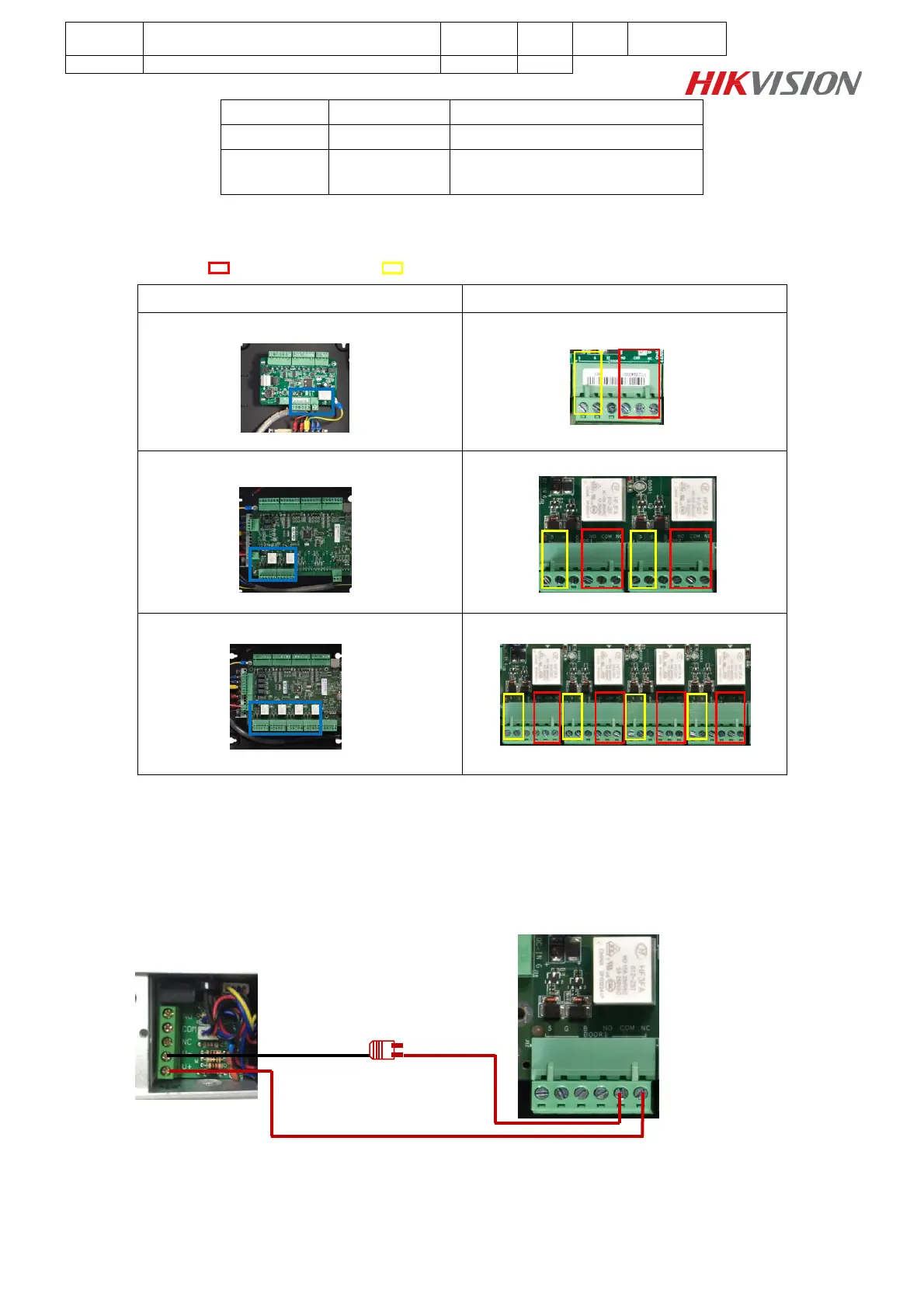

3. Correspondingly, there are lock and door magnetic interfaces in DS-K2800 series access controllers,
as pictures show:
Note: means lock interface; means door magnetic interface;
Access Controller
Interface
DS-K2801
DS-K2802
DS-K2804
Part 1: Lock+ & Lock- Wiring
DS-K4H250S & DS-K4H258S
Please connect as the following picture:
Interface
Description
Note
V+/V-
Power Supply
NO/NC, COM
Door Magnetic
Singnal Output
DS-K4H258S/D series magnetic locks
don't have NO/NC and COM interfaces
NC
C
O
M
NO
S
G
+
-
