Hikmicro Thunder TH35PC User Manual

4
6. App Connection
 Live view
 HIKMICRO Academy
 Set parameters
 Upgrade device
 Access albums
 Capture snapshots and record videos
Android
iOS
7. Getting Started

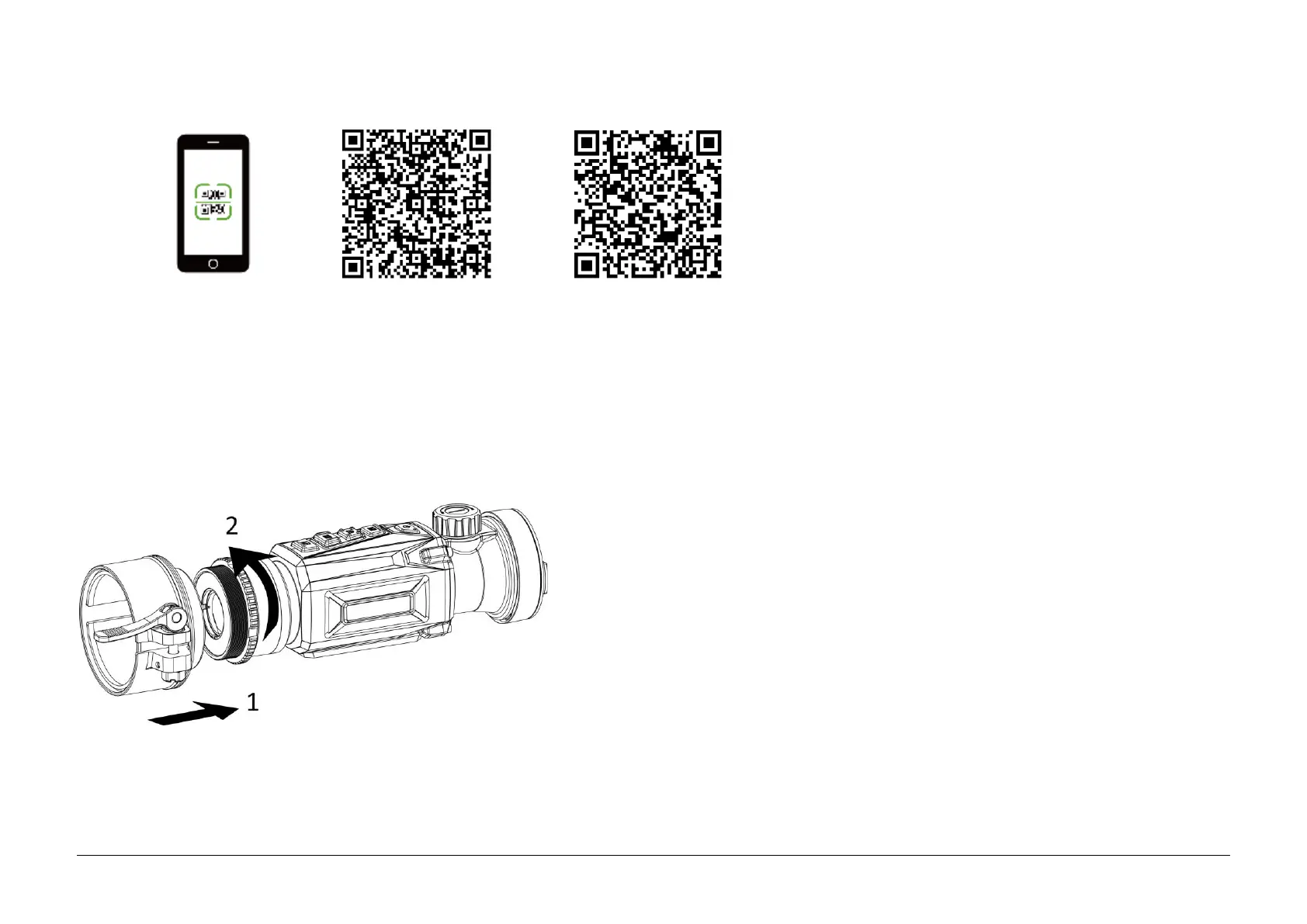

Install Adapter
Install an adapter if you want to connect the device to a daylight scope.
Steps
1. Align the red dot of the adapter with the red dot of the
clip-on eyepiece, and insert the adapter as arrow 1 shows.
2. Rotate the fixing ring clockwise with the supplied wrench
(as arrow 2 shows) to secure the adapter.
Notes:
 The adapter is not included in the package. Please
purchase it separately as needed.
 The thread size is M52
*
0.75. Purchase the adapter
recommended by the manufacturer.

Hikmicro Thunder TH35PC Specifications

General

Resolution	384 × 288
Pixel Pitch	12 μm
Lens	35 mm
Digital Zoom	1x, 2x, 4x, 8x
Detection Range	1800 m
Aperture	F1.0
Image Mode	White Hot, Black Hot, Red Hot, Fusion
Hot Track	Yes
Protection Level	IP67
Thermal Sensitivity	<35 mK
Frame Rate	50 Hz
Focus	Manual
IP Rating	IP67
NETD	<35 mK
Display	OLED, 1024x768
Battery Type	Rechargeable Li-ion
Power Supply	DC 5V/2A
Dimensions	187 x 62 x 59 mm
Operating Temperature	-20°C to 55°C
Sensor Type	VOx Uncooled Focal Plane Arrays
Spectral Range	8 μm to 14 μm
Storage Temperature	-40°C to 70°C
