VC2000 Series Vision Controller User Manual
17
Refer to the following table for the pin definitions.
Note
RS-232 is not a full functional serial port, and only pin 2, 3 and 5 are available.

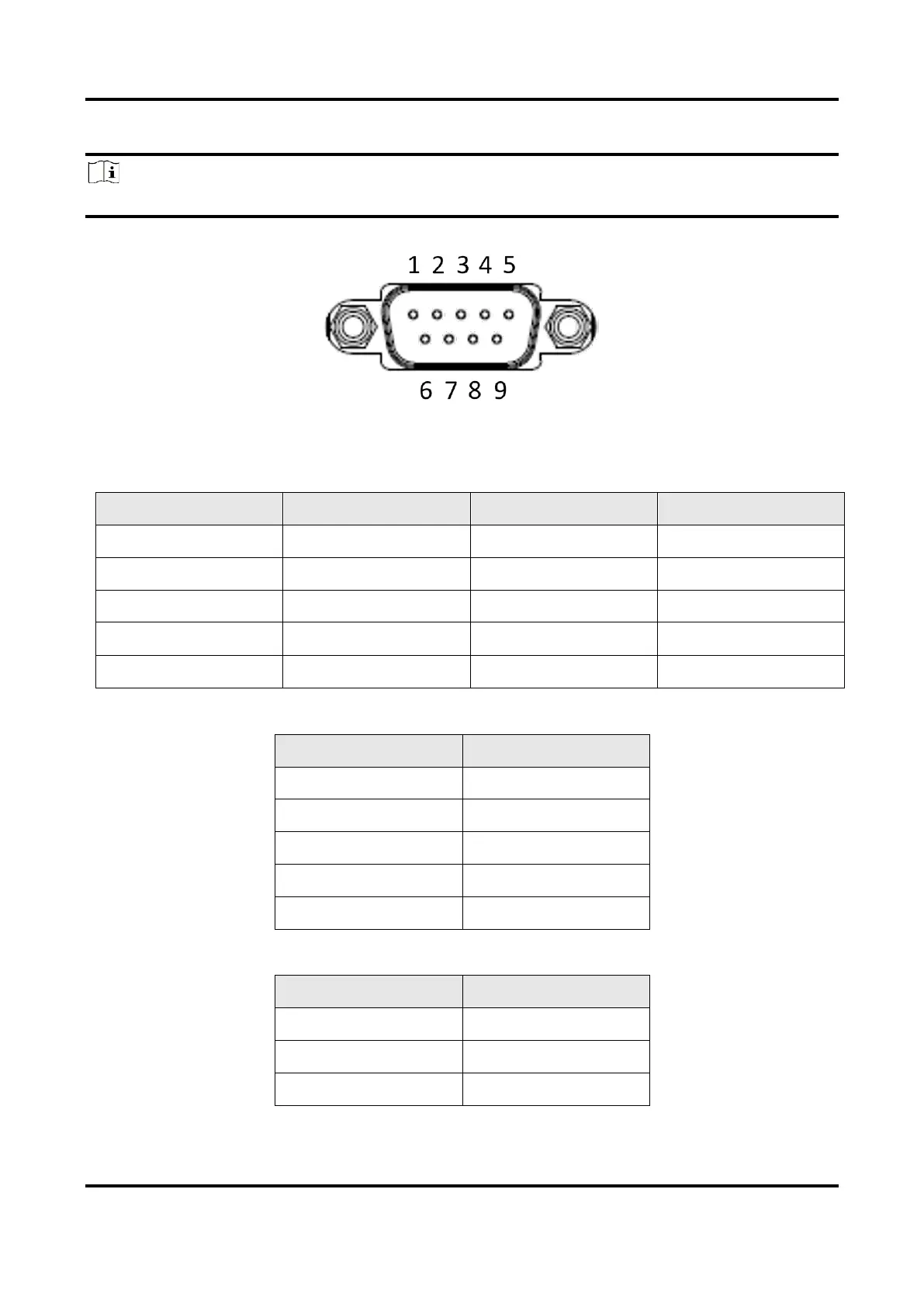

Figure 5-10 Serial Port
Table 5-4 RS-232 Pin Definitions
Pin No.
Description
Pin No.
Description
1
DCD
6
DSR
2
SIN
7
RTS
3
SOUT
8
CTS
4
DTR
9
RI
5
GND
--
--
Table 5-5 RS-422 Pin Definitions
Pin No.
Description
1
TX(B)
2
TX(A)
3
RX(A)
4
RX(B)
5
GND
Table 5-6 RS-485 Pin Definitions
Pin No.
Description
1
D-
2
D+
5
GND
