HIKVISION C30 Series Quick Start Guide

Video Wall Controller • Quick Start Guide
4
No.
Name
Description
1
Power LED
When the board is powered on normally, the power LED
is steady green.
2
Active LED
When the board runs normally, the active LED is flashing
green.
3
USB 2.0 port
Reserved, used to connect external devices such as
mouse, keyboard, USB flash drive, etc.
4
Console port
Used for device debugging, parameter configuration, etc.
5
RS-485/RS-232 port
RJ-45 port, used for screen control, serial port keyboard
control, etc.
6
Network port
Provide 2 network ports for network connection.
7
SFP port
Support one 10 Gigabit optical module.
8
SFP port LED

When the SPF port is inserted with an optical module,
the SPF port LED is steady green.

When data transmission is available, the SPF port LED
is flashing green.
The host system uses different service boards to realize different functions. The service boards are
hot swappable.

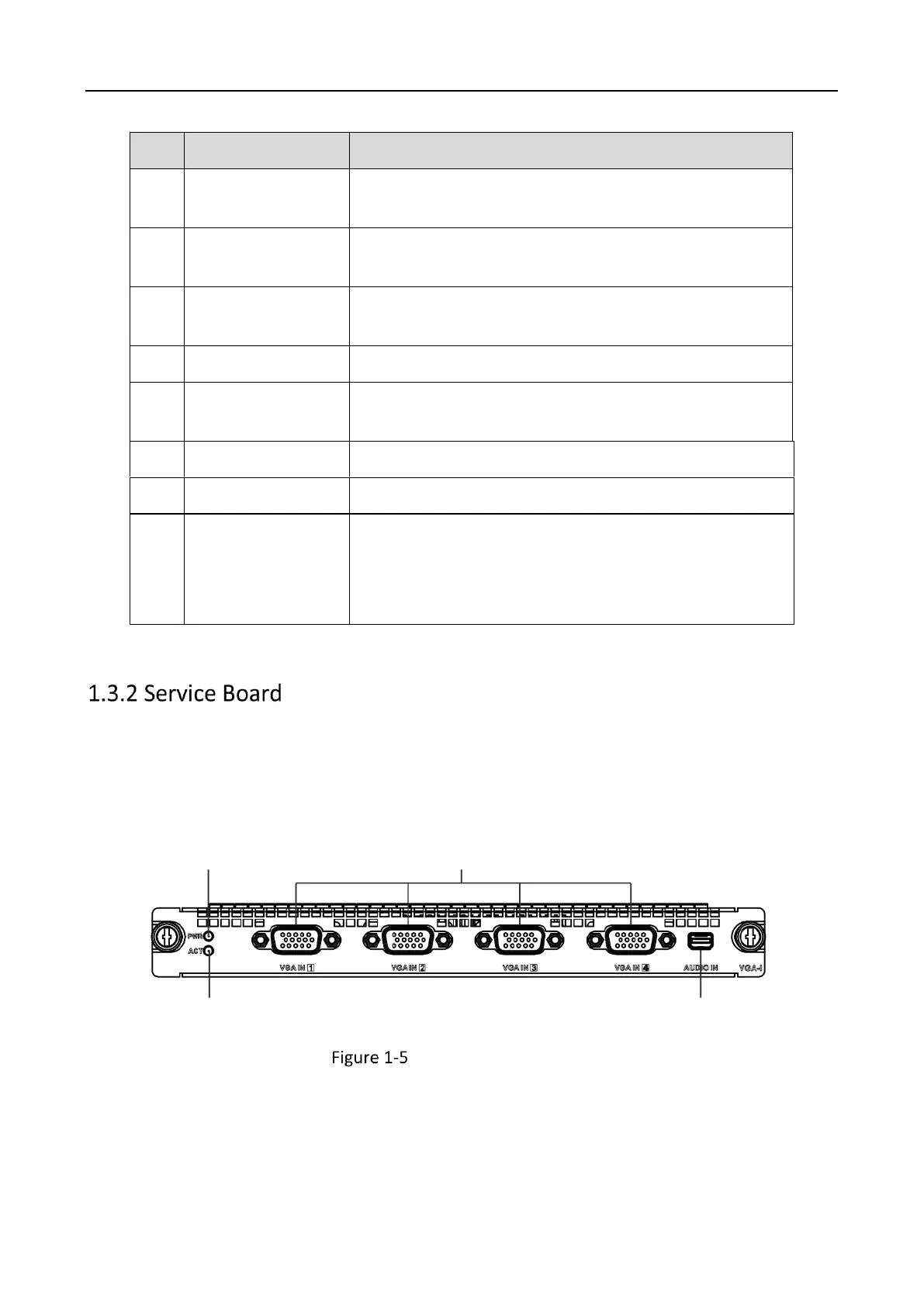

VGA Input Board
1
2
3
4
Front View of VGA Input Board
