HIKVISION C30 Series Quick Start Guide

Video Wall Controller • Quick Start Guide
7
No.
Name
Description
1
Power LED
When the board is powered on normally, the
power LED is steady green.
2
Active LED
When the board runs normally, the active LED is
flashing green.
3
DVI video input port
Provide 4 ports for DVI video input.
4
Audio input port
Provide a mini-DP 4-in-1 line-in audio input port.
Use an external audio adapter cable to connect to
this port for audio input.

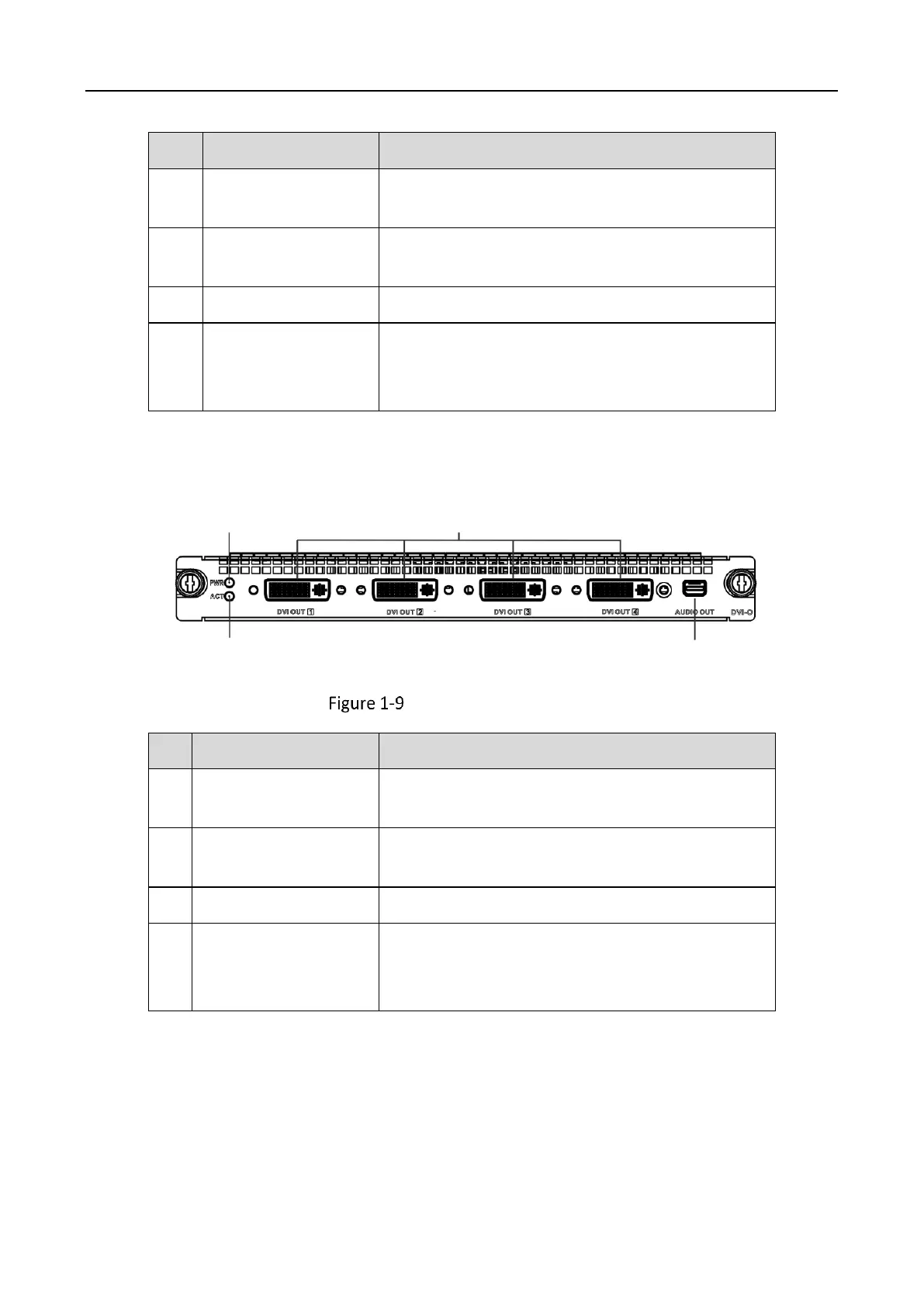

DVI Output Board
1
2
3
4
Front View of DVI Output Board
No.
Name
Description
1
Power LED
When the board is powered on normally, the
power LED is steady green.
2
Active LED
When the board runs normally, the active LED is
flashing green.
3
DVI video output port
Provide 4 ports for DVI video output.
4
Audio output port
Provide a mini-DP 4-in-1 line-in audio output port.
Use an external audio adapter cable to connect to
this port for audio output.

HIKVISION C30 Series Specifications

General

Brand	HIKVISION
Model	C30 Series
Category	Controller
Language	English
