Video Wall Controller • User Manual
10
− Click Horizontal Line, correct all the horizontal seams.
− Click Vertical Line, correct all the vertical seams.
3. Adjust the process bar of Seam Width.
4. Adjust the red, green, and blue progress bars and the RGB value. When the value of the on-site
screen is greater than the parameter value of the progress bar, the correction will be carried out.
Check Simultaneous Adjustment. All RGB parameter values will be consistent when adjust any
RGB progress bar.
Click Preview to view the display effect. The parameter value can be readjusted to achieve the
desired effect.
Click Application.
(Optional) Adjust the following data as required.
Clear Correction Data.
Correct Original Data Preview.
Load Original Data.
Please refer to the actual device for the above parameter settings.
Batch Correction
Batch correcting the screen/seam by importing correction files.
The correction file has already been obtained.
Select a screen as the starting point for batch correction in the manual correction interface.

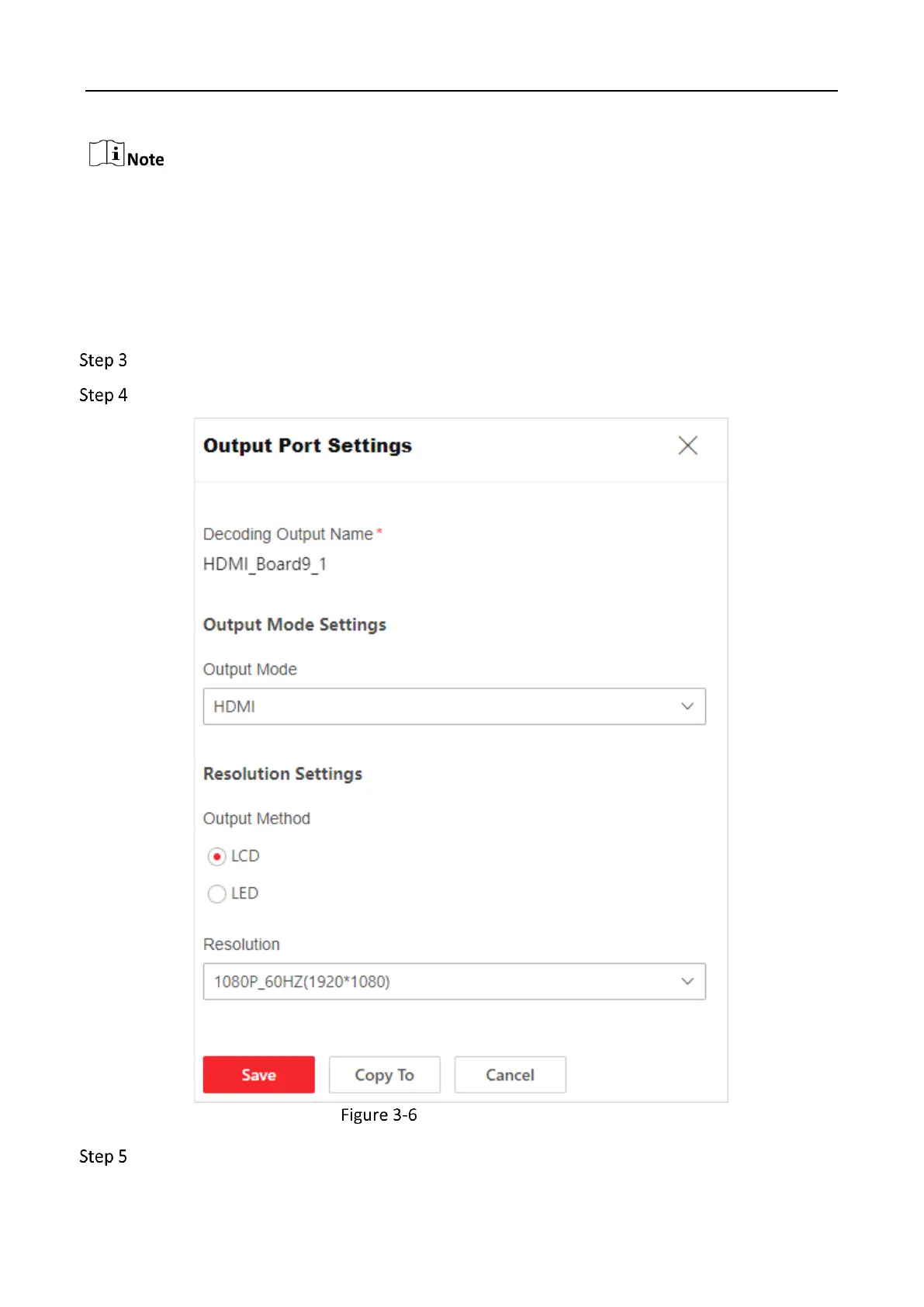

Enter Video Wall Configuration → Decoding Output. Select LED sending card in the Output List
(Example of naming the LED sending card: LEDSendCard_Board19_1). Right-click and select
Advanced Configuration.
Click Correct → Batch Correction.
Batch Correction
