CBF&CB SERIES USER MANUAL

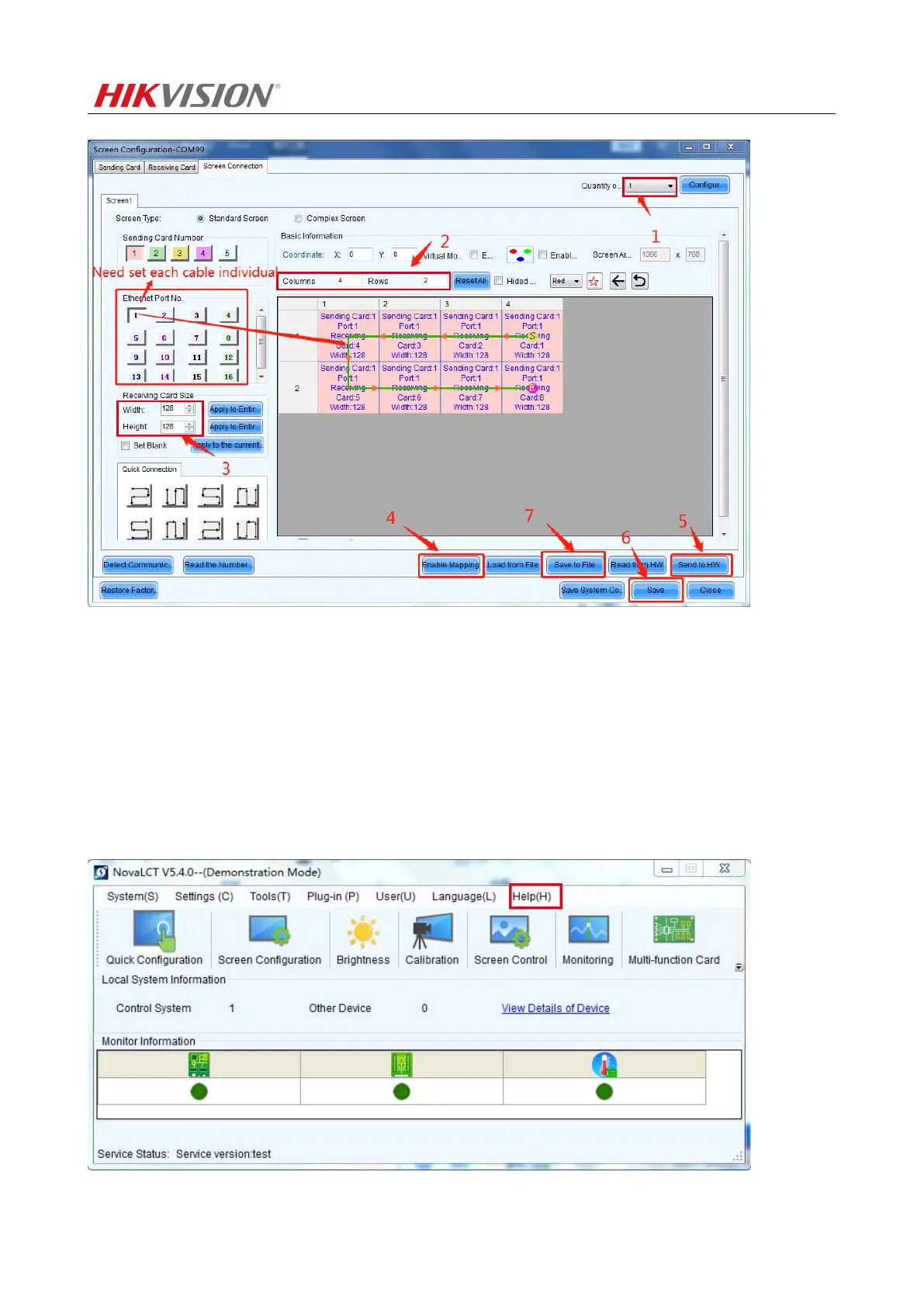

According to the previous network cable wiring, configure the display screen, change the number of receiving card
columns, rows, and load width and height of receiving card. For MRV412, MRV416 and AXS series (A5s, A8s, etc.)
receiving cards, you can open the Mapping function, see the cable routing mode, and then click the corresponding
grid (grid is the front view), and then send to the hardware (Send to HW), solidification (Save). Finally, it can be saved
to a file to avoid the loss of screen connection files by mis-operation.
After the connection, the screen displays into a complete picture. Well done!!
For more instructions, see the main menu interface help - User Files.
