HIKVISION DS-2CD2032-I Installation Manual

Installation Manual of Network Camera
67
3. Connect the corresponding power cable, network cable, audio and alarm cables.

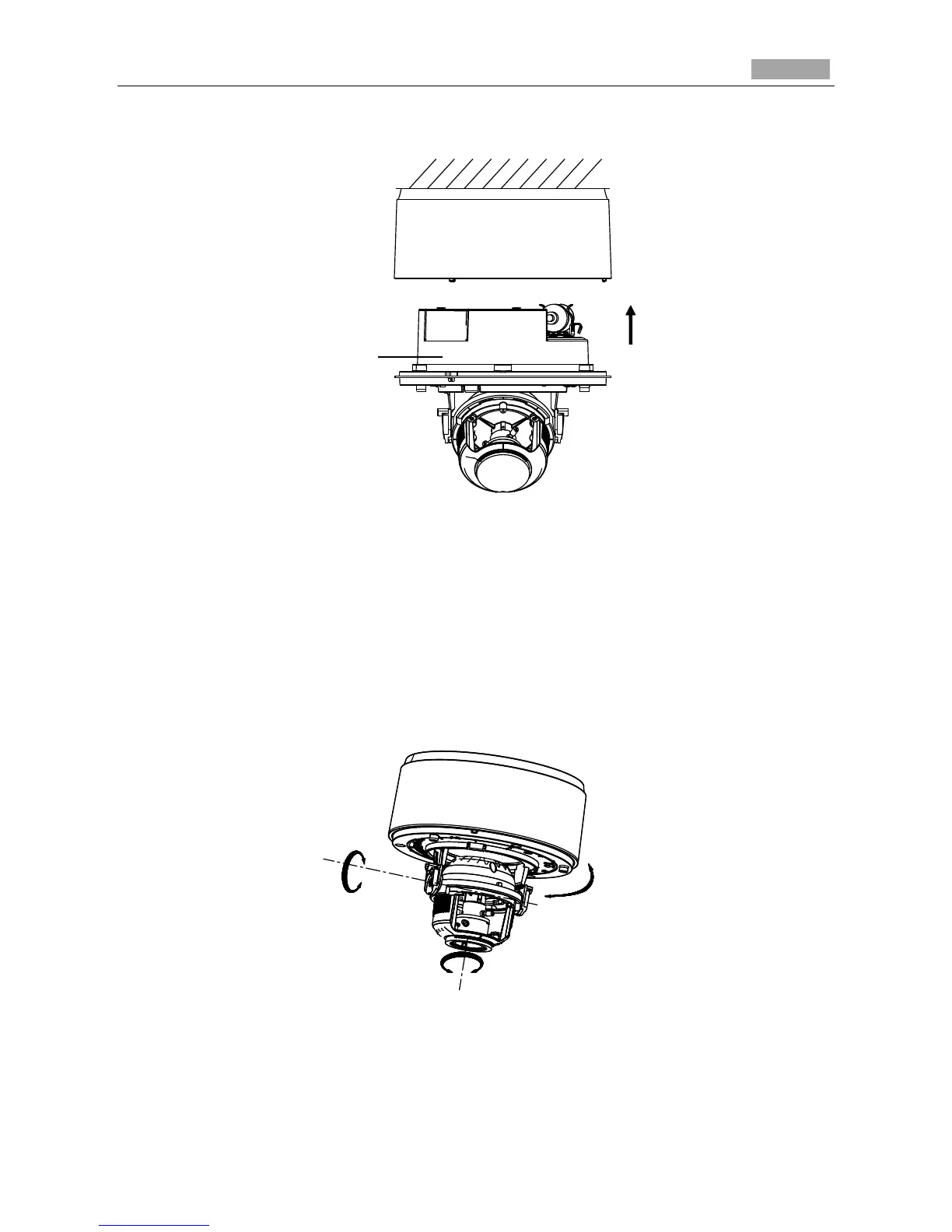

4. Install the dome drive to the mounting base.
Dome
Drive
Figure 3-94 Install the Dome Drive
5. Adjust the surveillance angle.
1). Loosen the lock screw besides the lens.
2). Hold the plastic plate and rotate the camera to adjust the panning angle [0~350°].
3). Push the lens forward and backward to adjust the tilting angle [0~80°].
4). Rotate the lens to adjust the azimuth angle of the camera [0~350°].
5). Tighten the lock screw.
Tilt 0~80°
Pan 0~350°
Rotation 0~350°
Figure 3-95 3-axis Adjustment
6. Adjust the Lens.
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD2032-I Specifications

General

Type	IP security camera
PTZ control	No
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Bullet
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Camera shutter speed	0.04 s
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focal length range	4 - 12 mm
LED type	IR
Night vision distance	30 m
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Ethernet LAN (RJ-45) ports	1
AC input voltage	12 V
Power source type	PoE
Power consumption (max)	7 W
Power consumption (typical)	5 W
Operating temperature (T-T)	-30 - 60 °C

Weight and Dimensions

Depth	76.9 mm
Width	60.4 mm
Height	139.2 mm
Weight	500 g
