HIKVISION DS-2CD2032-I Installation Manual

Installation Manual of Network Camera
92
4.4.2 Installation
Steps:
1. Drill the cable hole and the screw hole in the ceiling according to the supplied drill template.
2:Screw Hole for
Mounting Base
1:Screw Hole for
Bracket
2
1
Ceiling Mounting
2
2
2
1
1
1

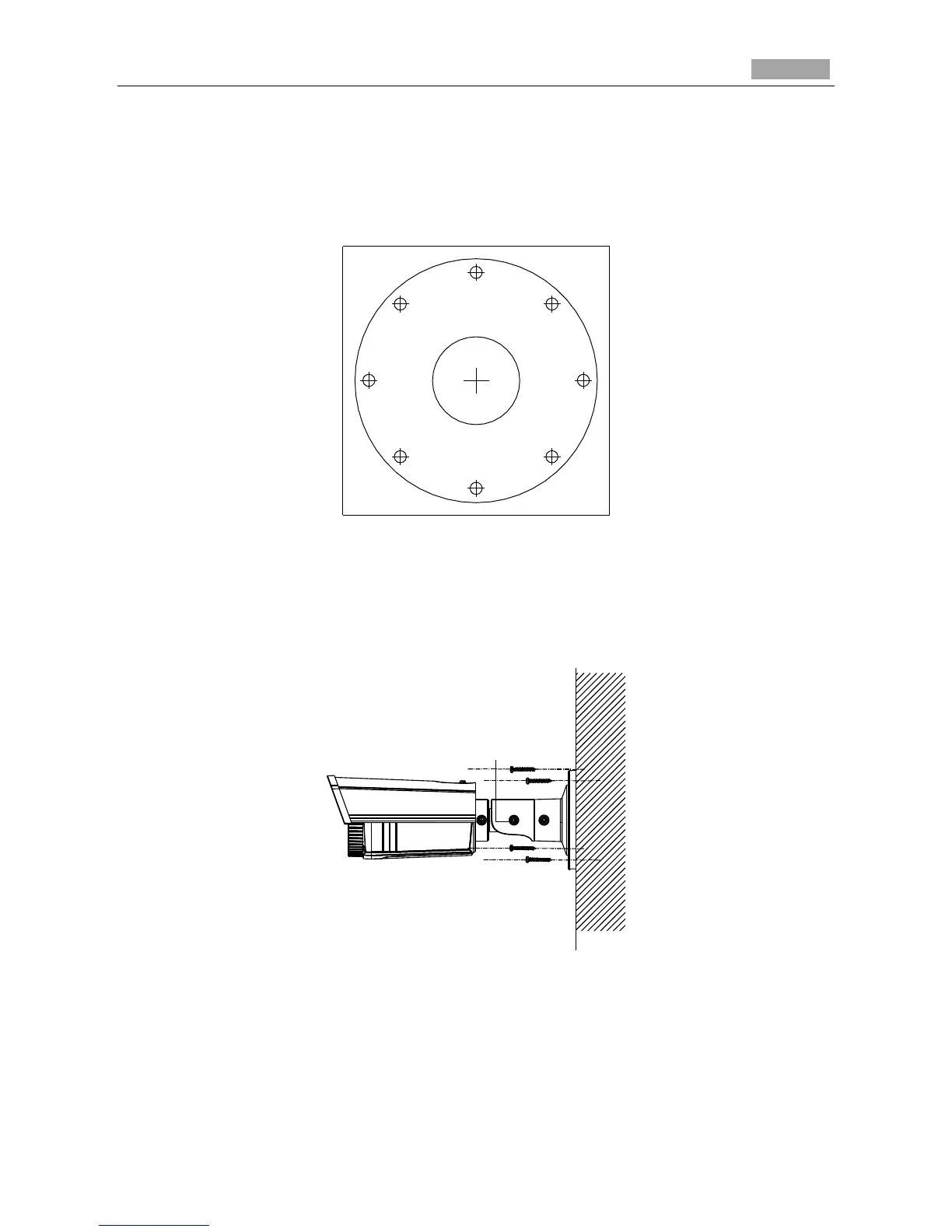

Figure 4-20 The Drill Template
2. Hammer the supplied plastic expansion bolt into the screw holes.
3. Route the cables to the cable hole and connect the corresponding power cable and video cable
4. Fix the camera to the wall with the supplied screws
Adjusting
Screw
Figure 4-21 Fix the Camera to the Ceiling
5. Adjust the surveillance angle.
1). Loosen No.1 adjusting screw to adjust the panning position [0° ~ 360°].
2). Tighten No.1 adjusting screw.
3). Loosen the No.2 adjusting screw to adjust the tilting position [0° ~ 100°].
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD2032-I Specifications

General

Type	IP security camera
PTZ control	No
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Bullet
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Camera shutter speed	0.04 s
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focal length range	4 - 12 mm
LED type	IR
Night vision distance	30 m
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Ethernet LAN (RJ-45) ports	1
AC input voltage	12 V
Power source type	PoE
Power consumption (max)	7 W
Power consumption (typical)	5 W
Operating temperature (T-T)	-30 - 60 °C

Weight and Dimensions

Depth	76.9 mm
Width	60.4 mm
Height	139.2 mm
Weight	500 g
