Network Camera User Manual
111

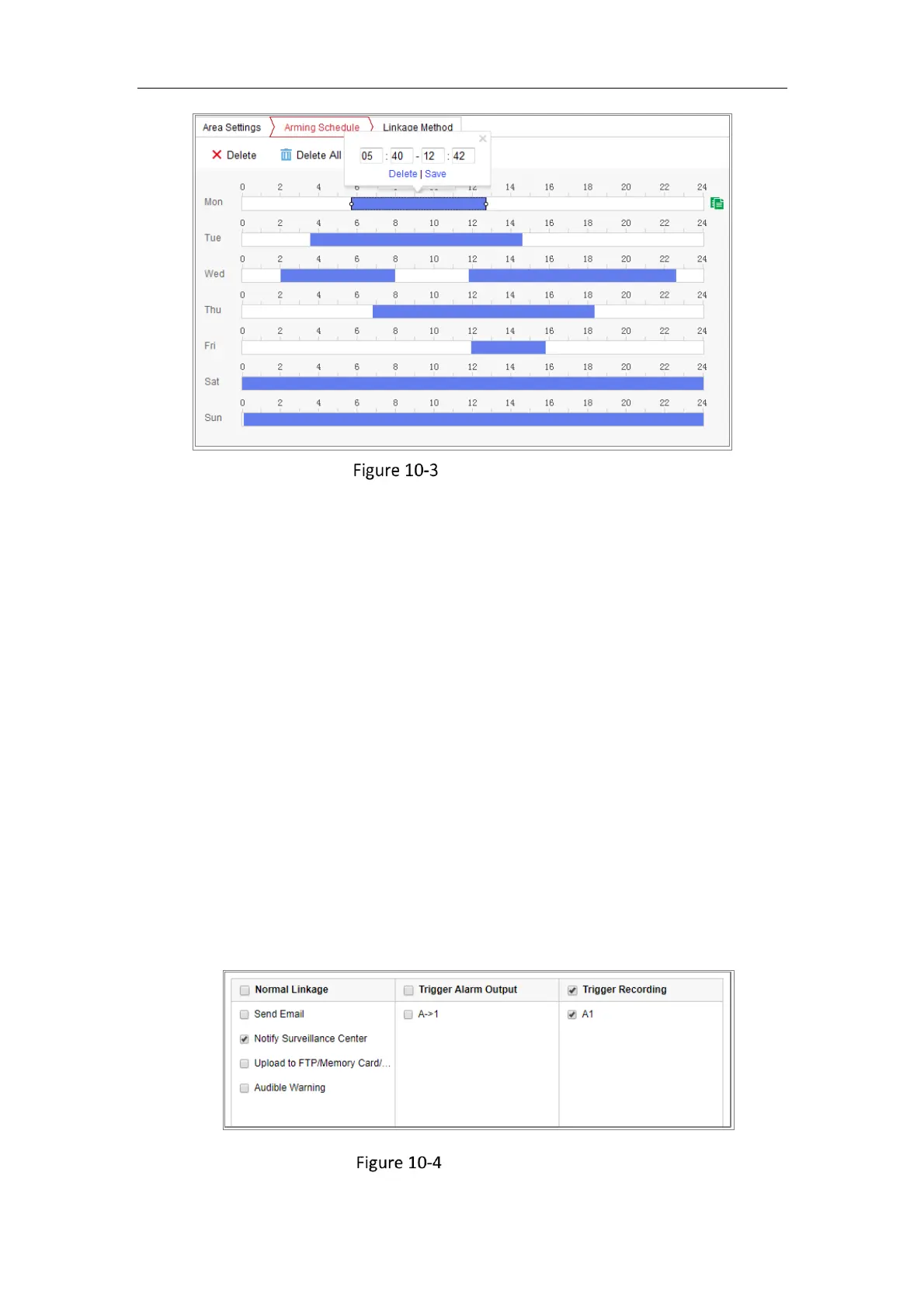

Arming Schedule
Note: Click on the selected time period, you can adjust the time period to the
desired time by either moving the time bar or input the exact time period.
3. (Optional) Click Delete to delete the current arming schedule, or click Save to save
the settings.
4. Move the mouse to the end of each day, a copy dialogue box pops up, and you
can copy the current settings to other days.
5. Click Save to save the settings.
Note: The time of each period cannot be overlapped. Up to 8 periods can be
configured for each day.
Task 3: Set the Linkage Method for Motion Detection
Check the checkbox to select the linkage method. Audible Warning, Send Email, Notify
Surveillance Center, Upload to FTP/Memory Card/NAS, Trigger Recording and Trigger
Alarm Output are selectable. You can specify the linkage method when an event occurs.
Linkage Method
