HIKVISION DS-2CD4012F-A Installation Manual

Installation Manual of Network Camera
98
Junction Box
Safety Rope

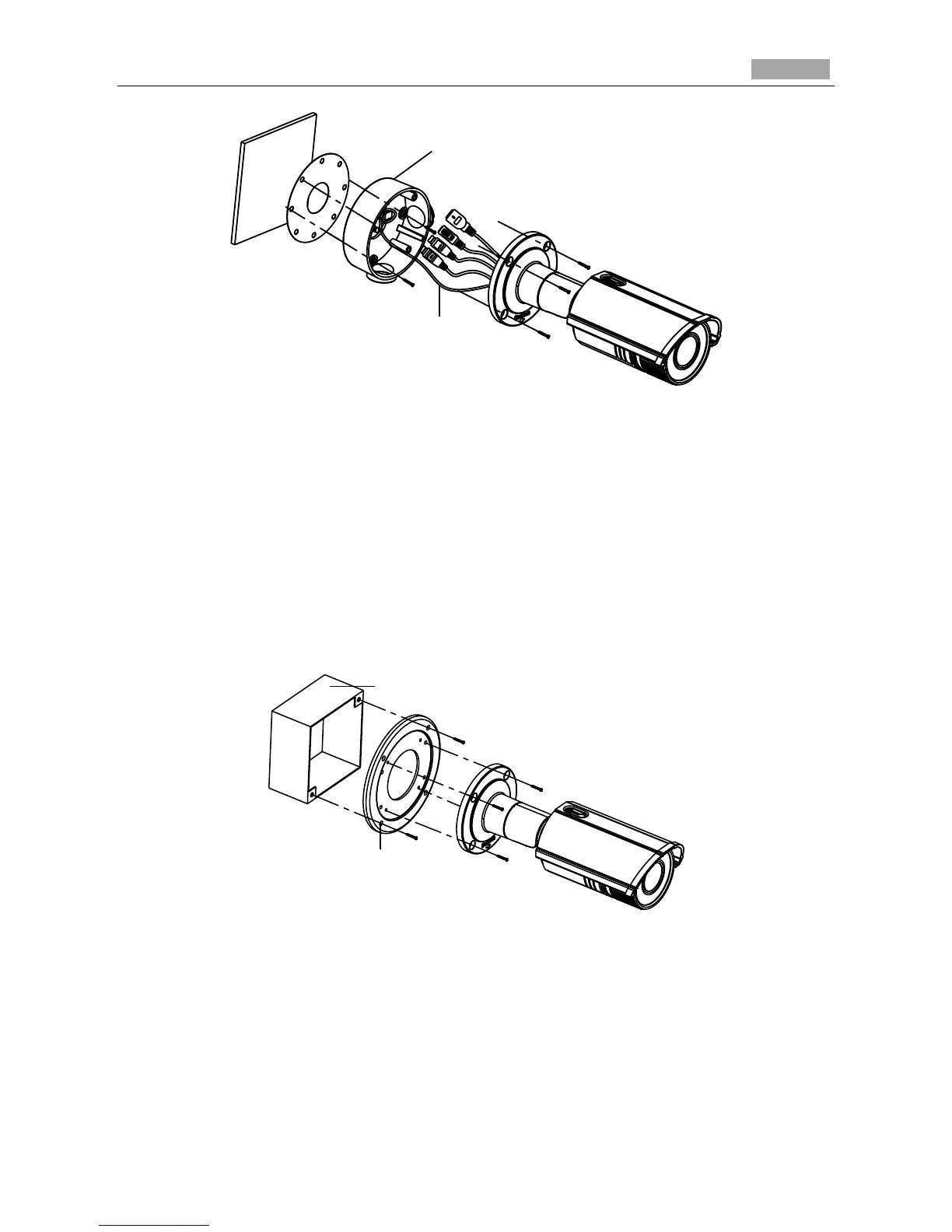

Figure 4-30 Secure the Camera
 Wall Mounting with a Gang Box
Before you start:
For mounting with a gang box, you have to purchase a gang box.
Steps:
1. Secure the camera attachment to a gang box with screws.
2. Route the cables of the camera.
3. Secure the camera to the camera attachment with screws. Refer to the Figure 4-31.
Gang Box
Camera Attachment
Figure 4-31 Secure the Camera
 View Angle Adjusting
Purpose:
3-axis (pan/tilt/rotation) adjusting allows adjustment for optimum camera rotation and placement.
Pan Adjustment
Steps:
