People Counting Camera Configuration
1. Product Model
i. DS-2CD6825G0/C-I(V)(S)
2. Product Firmware
i. PJ14PC20200402001_IPCDC_H7_EN_STD_5.5.90_200430
3. Configuration
i. Login to the camera web page->Upgrade with the customized firmware. After
upgraded, be sure to restore the camera settings.

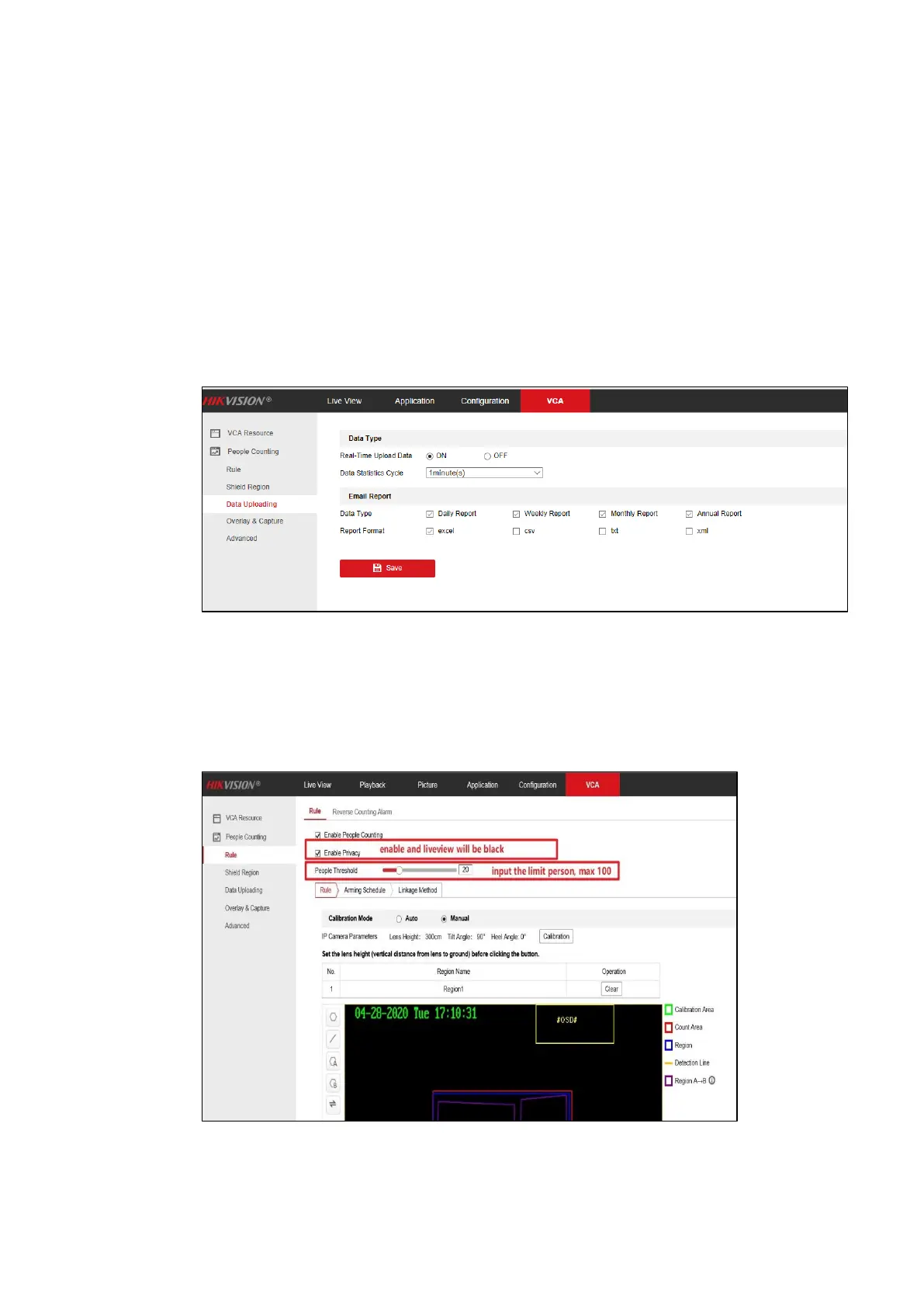

ii. Go to VCA->People Counting->Data Uploading, be sure to turn on real-time
upload data.
iii. Click “Rule” tab to enable People Counting and set up counting rule on the image.
Refer to the picture below.
iv. Enable privacy to make the live view image black on the monitor.
v. Set up people threshold which is the maximum number of people available.
Note: When the threshold is reached, the alarm output and audio will be triggered
automatically till the number of people stayed is below the threshold.
vi. Go to Configuration->Image->OSD Settings to define the flow control contents on
