HIKVISION DS-2CD6986F User Manual

Network Dome Camera·Quick Start Guide
15
15

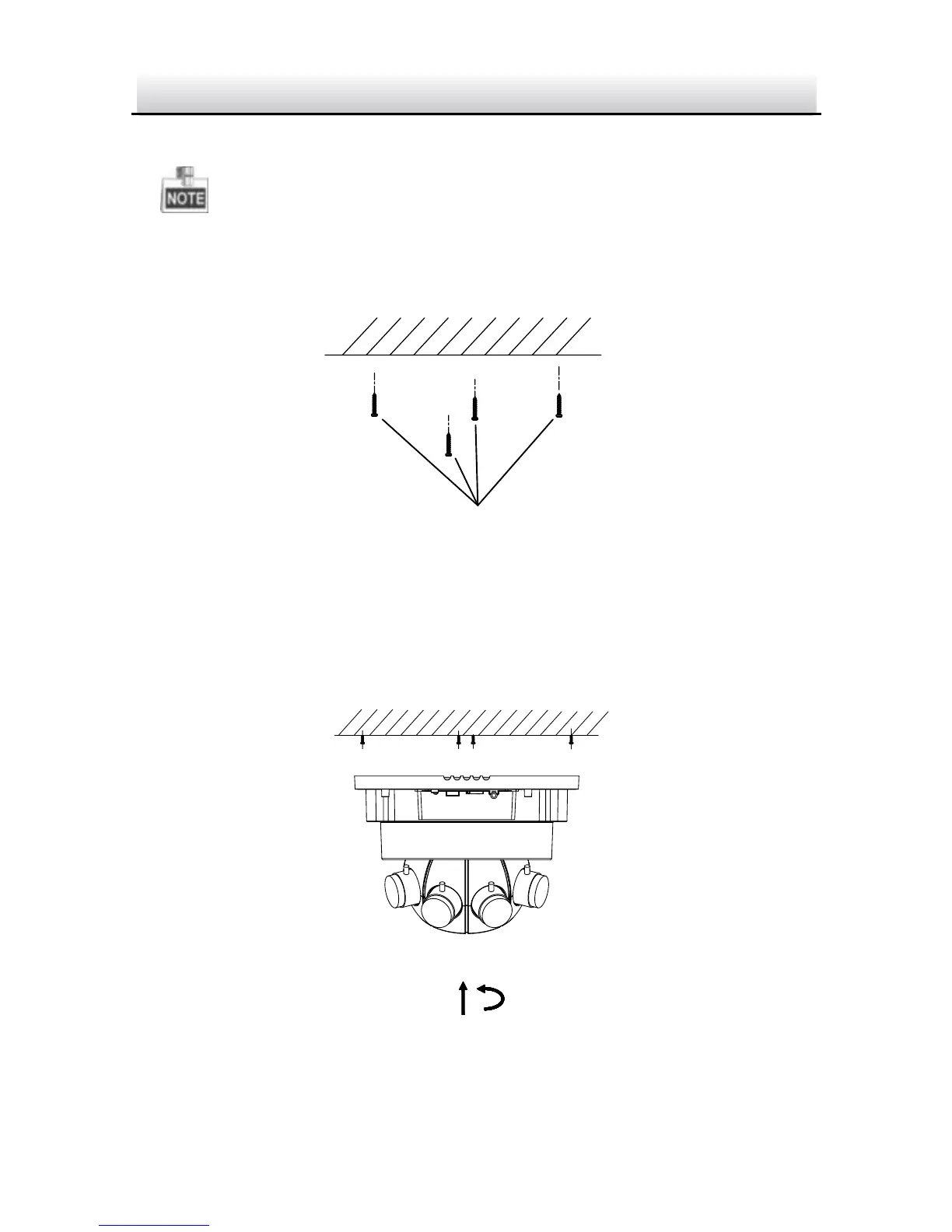

2. Screw the expansion bolts into the drilled screw holes.
The bolts should not be too loose to drop out, or too tight to fix
the camera.
Expansion Bolts
Install the Expansion Bolts Figure 2-3
3. Align the expansion bolts with the screw holes on camera base.
Slightly rotate the camera body clockwise.
Align the Camera with the Expansion Bolts Figure 2-4

HIKVISION DS-2CD6986F Specifications

General

Type	IP security camera
Certification	CE
Placement supported	-
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
Sensor type	CMOS
Optical sensor size	1/1.8 \
Pan range	0 - 360 °
Tilt angle range	45 - 90 °
Camera shutter speed	1/25 ~ 1/100000 s
Minimum illumination	0.002 lx
Fixed focal length	5 mm
Lens mount interface	CS mount
Total megapixels	7.3 MP
Maximum resolution	4096 x 1800 pixels
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	1920 x 1200 (WUXGA), 3840 x 2400
Audio input channels	1 channels
Password protection type	User
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3at
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
Interface	RJ-45/RS-485
Ethernet LAN (RJ-45) ports	1
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
IK code	IK10
Form factor	Dome
Product color	White
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	22 W

Weight and Dimensions

Height	159 mm
Weight	2850 g
Diameter	195 mm
