HIKVISION DS-2CD6986F User Manual

Network Dome Camera·Quick Start Guide
30
30
Activating the Camera 3.2
You are required to activate the camera first by setting a strong
password for it before you can use the camera.
Activation via Web Browser, Activation via SADP, and Activation via
Client Software are all supported. We will take activation via SADP
software and Activation via Web Browser as examples to introduce
the camera activation. Please refer to the User Manual of Network
Camera for Activation via Client Software.
Activation via Web Browser 3.2.1
Steps:
1. Power on the camera, and connect the camera to the network.
2. Input the IP address into the address bar of the web browser, and
click Enter to enter the activation interface.
Notes:
 The default IP address of the camera is 192.168.1.64.
 For the camera enables the DHCP by default, the IP address is
allocated automatically, and you need to activate the camera
via SADP software and search the IP address.

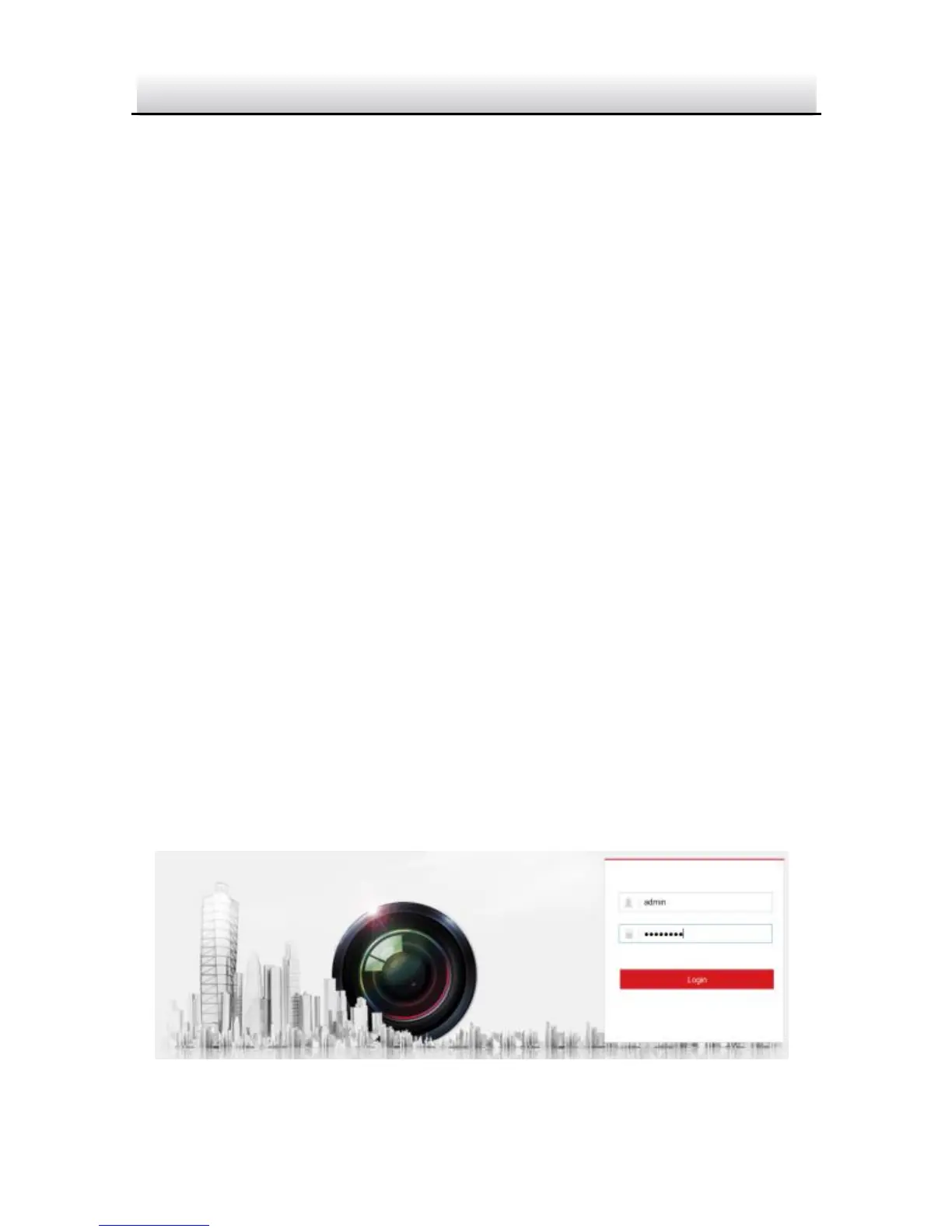

Activation Interface(Web) Figure 3-3

HIKVISION DS-2CD6986F Specifications

General

Type	IP security camera
Certification	CE
Placement supported	-
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
Sensor type	CMOS
Optical sensor size	1/1.8 \
Pan range	0 - 360 °
Tilt angle range	45 - 90 °
Camera shutter speed	1/25 ~ 1/100000 s
Minimum illumination	0.002 lx
Fixed focal length	5 mm
Lens mount interface	CS mount
Total megapixels	7.3 MP
Maximum resolution	4096 x 1800 pixels
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	1920 x 1200 (WUXGA), 3840 x 2400
Audio input channels	1 channels
Password protection type	User
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3at
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
Interface	RJ-45/RS-485
Ethernet LAN (RJ-45) ports	1
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
IK code	IK10
Form factor	Dome
Product color	White
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	22 W

Weight and Dimensions

Height	159 mm
Weight	2850 g
Diameter	195 mm
