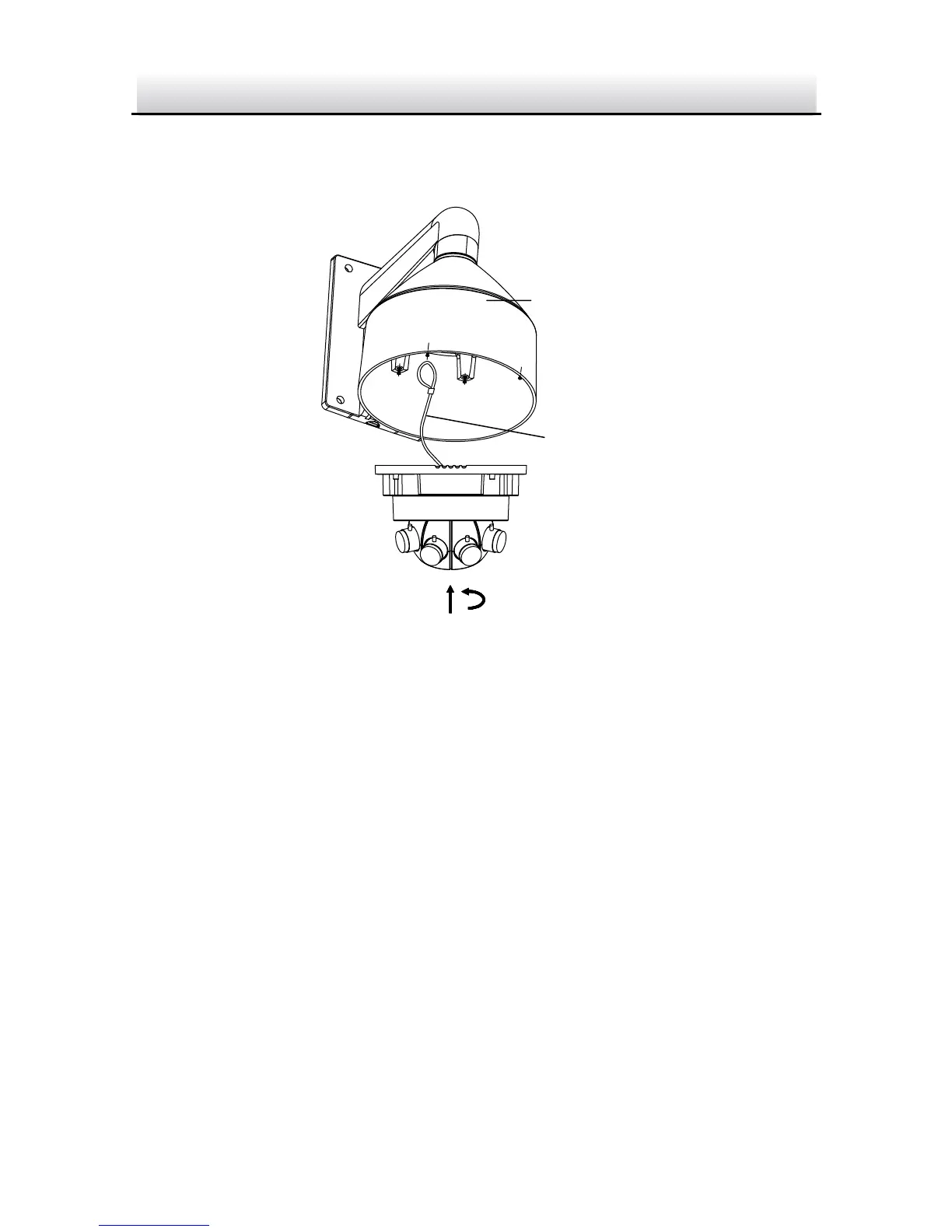

Install the Camera to the Bracket (1) Figure 2-12
4. Connect the cables.
5. For water-proofing, you can install a water-proof jacket to
network cable (refer to Section 2.5) and apply thread seal tape to
other cable connections.
6. Align the screws holes on the camera base to the installed screws,
and rotate the camera clockwise to hook to the camera to the
screws.
7. Fasten the screws to secure the camera to the bracket.
