HIKVISION DS-2CD754FWD-E - Cube Camera Interface Description

Quick Guide of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
7
Serial NO.
Description
1
10M/100M self-adaptive Ethernet interface
2
Power supply
3
IN, G: Alarm input interface
1A, 1B: Alarm output interface
4
D+, D-: RS-485 interface
5
AUDIO IN, G: Audio input interface
AUDIO OUT, G: Audio output interface

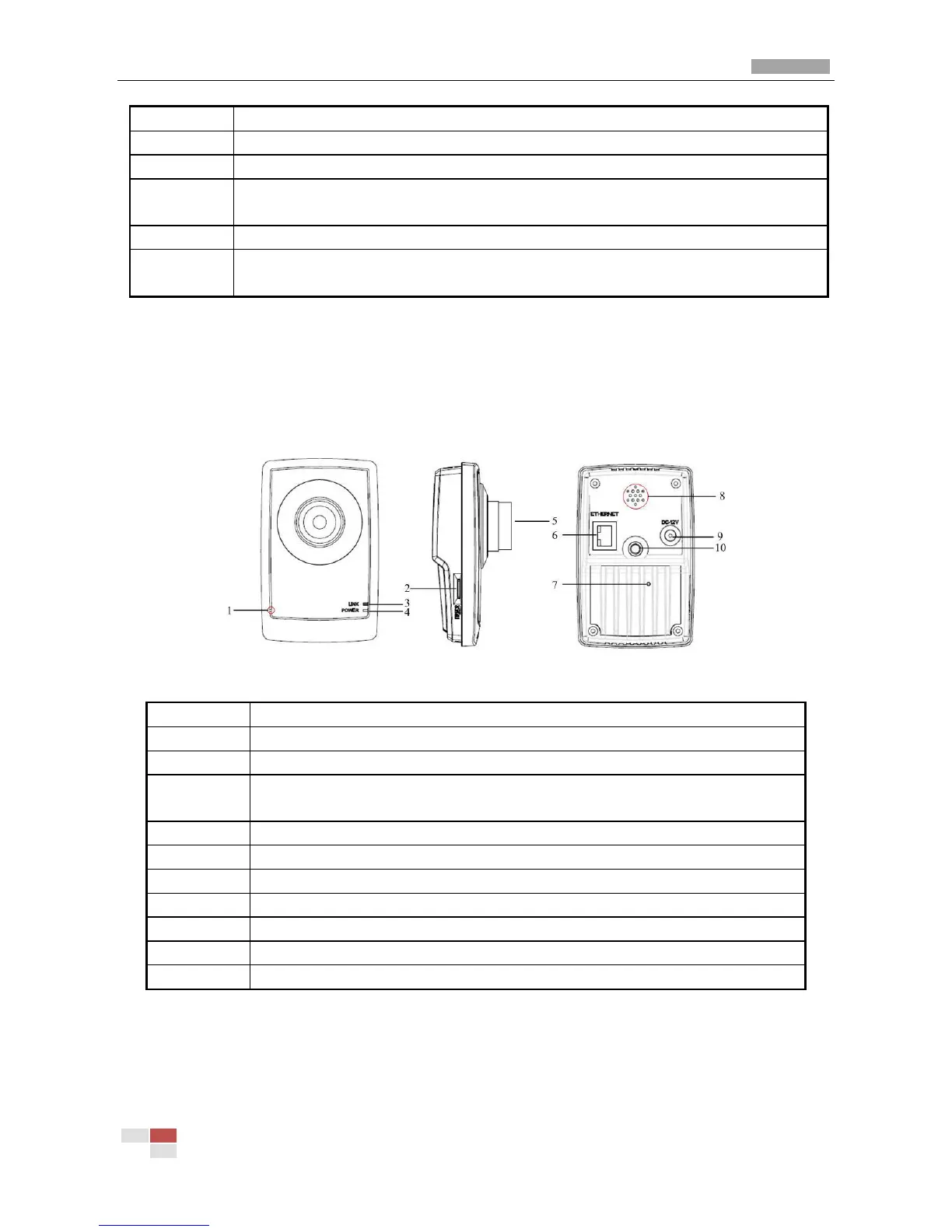

1.4 Cube Camera Interface Description
Figure 1.4.1
Serial NO.
Description
1
Microphone hole
2
Micro SD card solt
3
LINK: Network status LED indicator.
When the network is connected, the LED flickers in green.
4
Power LED indicator, It turns solid red when power is applied to the unit
5
Lens
6
ETHERNET: 10M / 100M self-adaptive Ethernet interface
7
RESET: Reset all parameters to factory default settings
8
Speaker hole
9
Power supply
10
Bracket mounting holes, used to fix the camera to the bracket
