HIKVISION DS-2CD852MF-E

Quick Guide of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
6

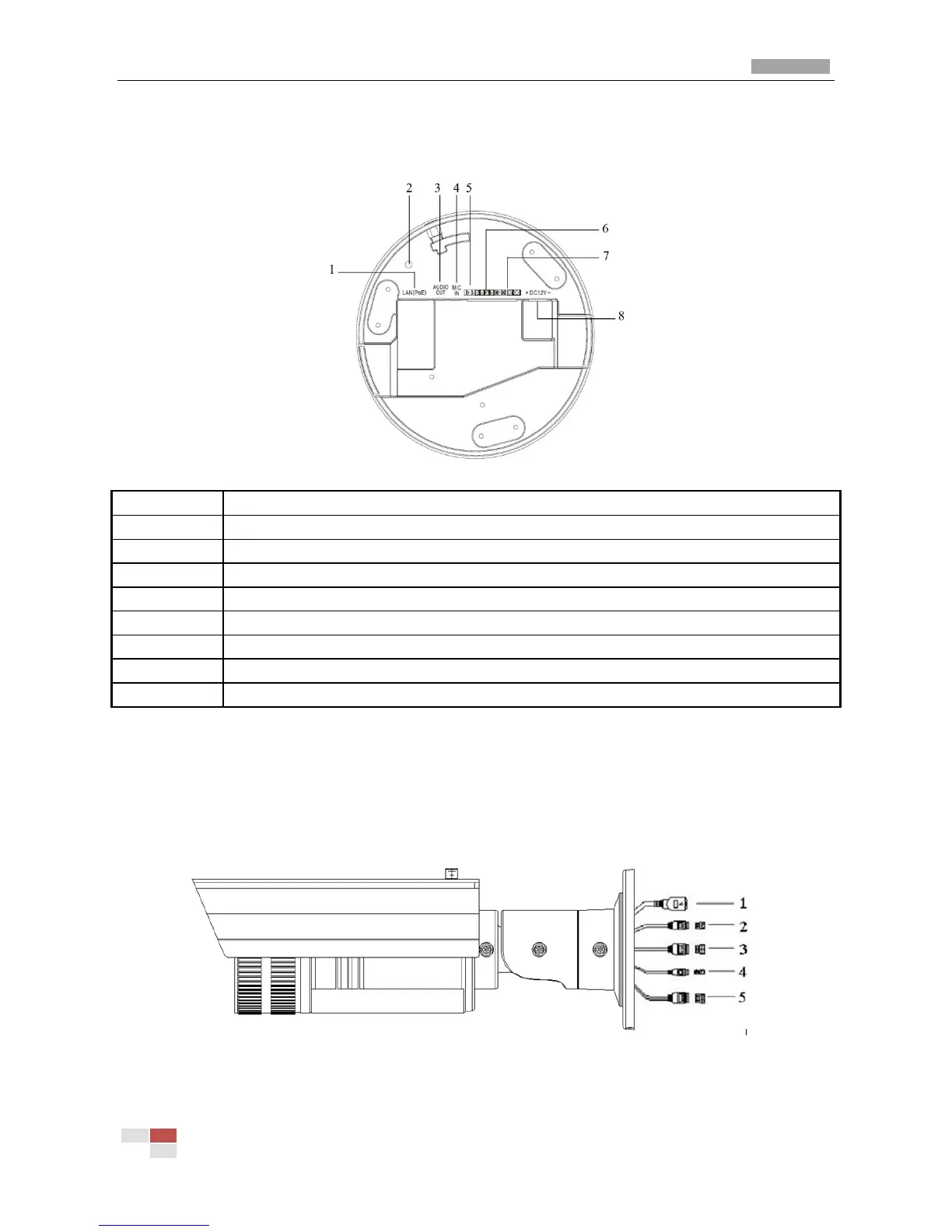

1.2.3 Dome Camera Ⅲ
Figure 1.2.3
Serial NO.
Description
1
10M/100M self-adaptive Ethernet interface
2
INITIAL SET: Reset the camera
3
AUDIO OUT: Audio output interface
4
MIC IN: Audio input interface
5
D+, D-: RS-485 interface
6
1A, 1B, 2A, 2B: Alarm output interface
7
IN1, GND, IN2, GND: Alarm input interface
8
Power supply
1.3 Bullet Camera Interface Description
Figure 1.3.1
