HIKVISION DS-2CD864-EI3 Installation Manual

Installation Manual of Network Camera
74
Drill Template
1
1
1
1
Hole A:for cables routed through the ceiling
Screw hole 1:for Mounting Base
FRONT

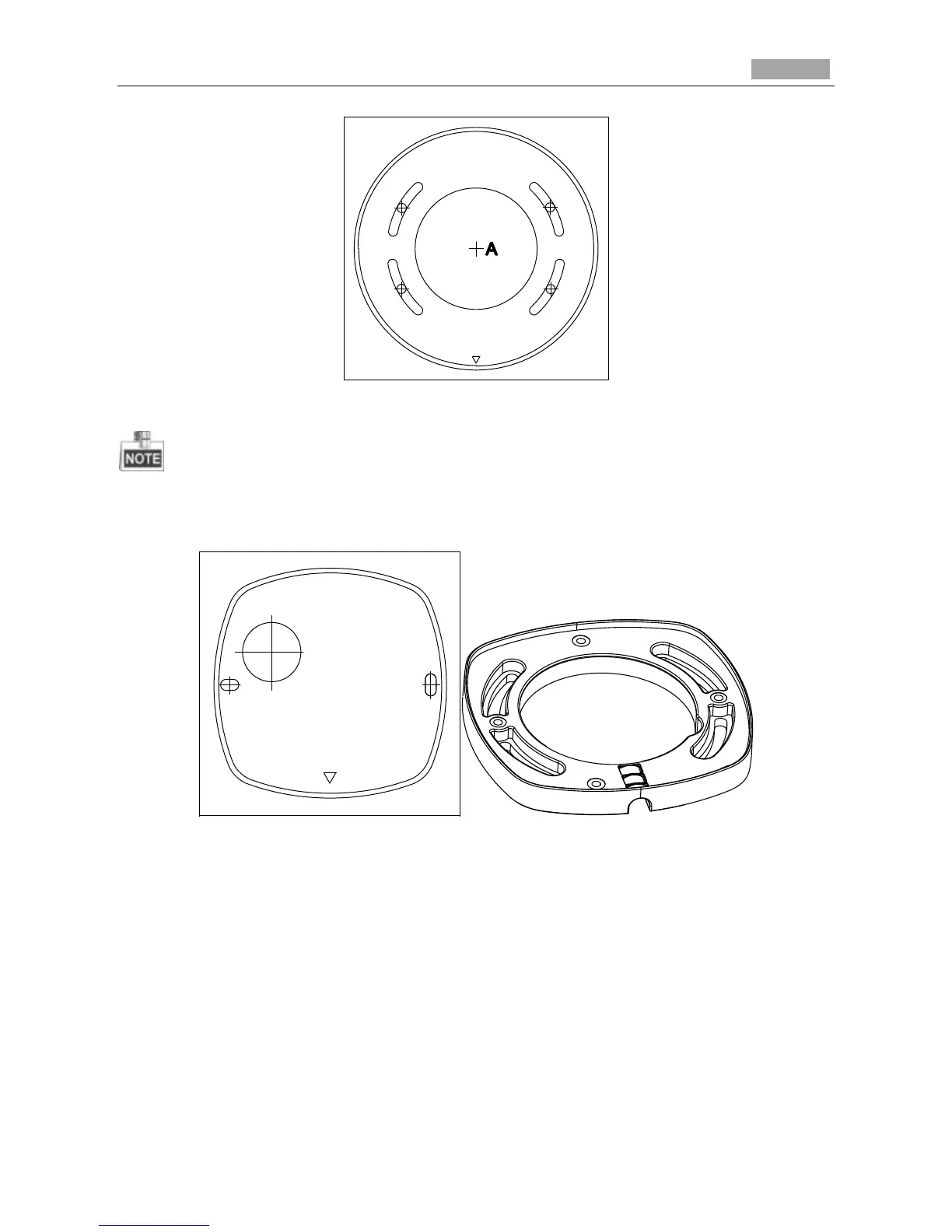

Figure 3-106 Type I Drill Template
A different type of drill template might be provided because of the different batches of products. And
also, the contained adapter plate matches with type II drill template differs as well. See figure below.
Drill Template
A
1 1
Hole A :for cables routed through the wall
Screw hole1 :for Mounting Base
FRONT
Code:194101278
Figure 3-107 Type II Drill Template/Adapter Plate
2. Loosen the set screw on the front cover to disassemble the camera with the supplied Allen key.
