HIKVISION DS-2CE10DF0T-F

2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.

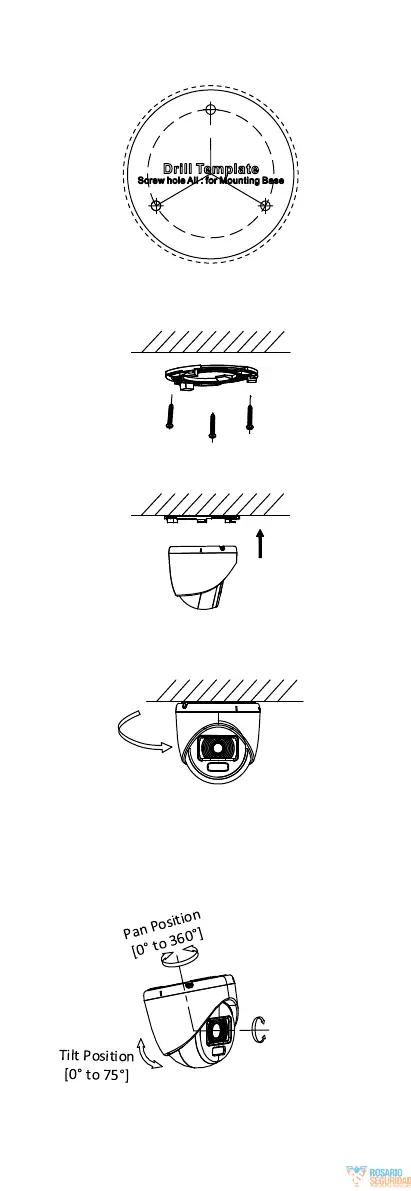

Figure 2-11 Drill Template
3. Attach the gang box to the ceiling and secure it with
three PA4 × 25 screws (supplied).
Figure 2-12 Attach the Gang Box to the Ceiling
4. Fit the camera onto the gang box.
Figure 2-13 Fit the Camera onto the Gang Box
5. Turn the camera clockwise until it snaps into the
gang box.
Figure 2-14 Snap the Camera into the Gang Box
6. Connect the power cord and video cable.
7. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure
below.
Rotation Postion
[0° to 360°]
Figure 2-15 3-Axis Adjustment
1). Rotate the enclosure to adjust the pan position
[0° to 360°].
