Ceiling mounting and wall mounting are similar.
Following steps take ceiling mounting as an example.
Note:
For installation with junction box, refers to 2.1.2
Ceiling/Wall Mounting with Junction Box.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
Screw Hole
Screw Hole
Screw Hole
templat e
Cable
Hole

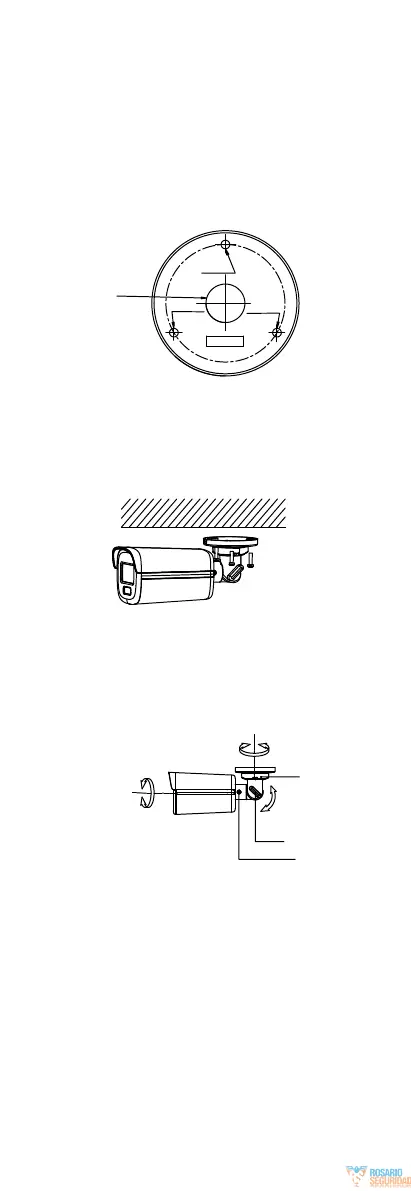

Figure 2-8 Drill Template
3. (Optional) Drill the cable hole, when the cables are
routed through the ceiling.
4. Align the screw holes in the bracket to the ceiling,
and secure the camera with three PA4 × 25 screws
(supplied).
Figure 2-9 Secure the Camera to the Ceiling
5. Connect the power cord and video cable.
6. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure
below.
Rotation Position
[0° to 360°]
Tilt Position
[0° to 180°]
Pan Position
[0° to 360°]
Trim Ring
Screw
Thumbscrew
Figure 2-10 3-Axis Adjustment
1). Loosen the trim ring to adjust the pan position
[0° to 360°].
2). Loosen the thumbscrew to adjust the tilt
position [0° to 180°].
3). Loosen the screw to adjust the rotation position
[0° to 360°].
7. Tighten the trim ring and screws to finish the
installation.
2.3 Installation of Type III Camera
2.3.1 Ceiling Mounting Without Junction Box
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
